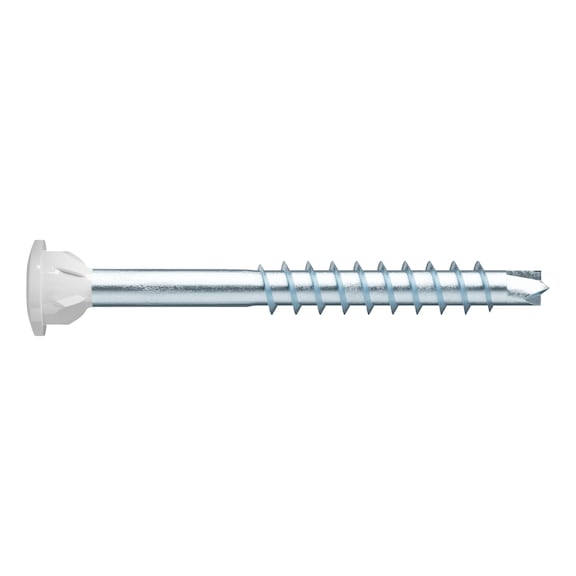

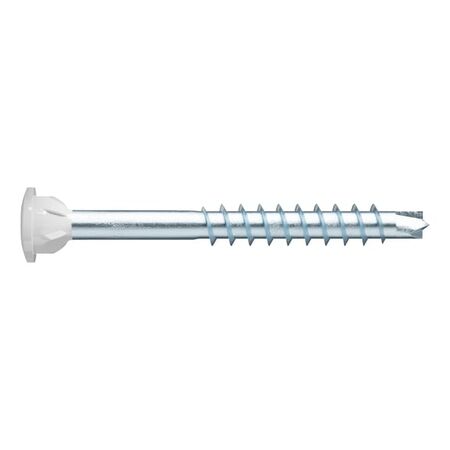

ASSY®plus 4 TH Glass Strip Screw | Hardened Zinc-Plated Steel | 60° Top Head | White | @Pack of 500 | by Wurth
ASSY®plus 4 TH glass strip screw features a hardened zinc-plated steel design with a 60° top head, perfect for furniture assembly and cabinet making. Ideal for professionals, this screw ensures gap-free mounting close to edges, with advanced centering drill tip for precise positioning and clean drilling. Its milling ribs prevent splitting of narrow wooden profiles, making it a reliable choice for various interior fitting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 TH Glass Strip Screw | Hardened Zinc-Plated Steel | 60° Top Head | White | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 17884325
Alternatively Known As: Glass strip screw, partial thread wood screw, zinc-plated wood screw, furniture screw, cabinet screw, interior finishing screw
Technical Specifications
- Nominal diameter: 3 mm
- Length: 25 mm
- Thread length: 11 mm
- Screw-thread length with drill tip: 14.5 mm
- Colour of head: White
- Head type: Top head 60 degree with milling ribs
- Head diameter: 5.2 mm
- Head height: 3.3 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Partial thread
- Design: With shaft
- Thread form: Single start thread
- Core diameter: 2.1 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 45 degrees
- Suitable materials: Board ply wood, wood, derived timber product, hardwood, LVL, softwood
- Product weight per item: 0.934 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.3mm x 25mm x 5.2mm
- Weight: 0.47 kg
Key Features
- Partially threaded screw with small white top head and milling ribs for gap-free mounting close to edges of delicate glass strips or skirting boards
- Ideal power transmission thanks to RW recess
- Larger contact surface at the bit for more power
- Tight-fit recess and perfect bit fit for stability, one-handed working, and precise positioning
- Compatibility with previous AW drive
- Advanced centring drill tip for precise positioning and clean drilling
- Chip-free positioning and drilling
- Drilling cutting edges similar to Forstner bit for powerful and precise drilling
- Centring pin prevents slipping on hard surfaces
- Gentle thread start for quick screwing
- Small lens-shaped rounded white painted screw head for stylish, unobtrusive mounting
- Milling ribs prevent splitting of narrow wooden profiles
- Asymmetrical single thread for maximum screw connection reliability
- Coordinated heat treatment ensures high strength and ductility
- Suitable for use in board ply wood, wood, derived timber products, hardwood, LVL, and softwood
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct application and secure fastening.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- AS/NZS 4785 – Wood screws (implied for wood screw products)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for furniture, cabinet, store, exhibition stand construction, and interior fitting applications.
