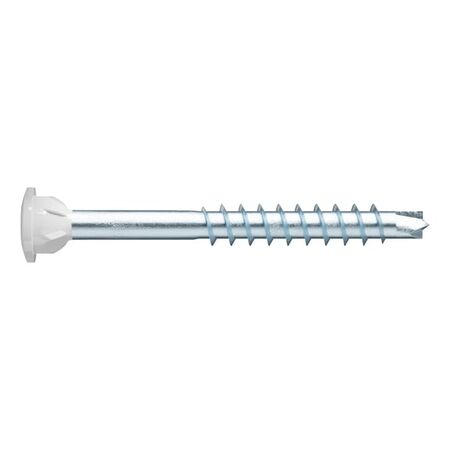

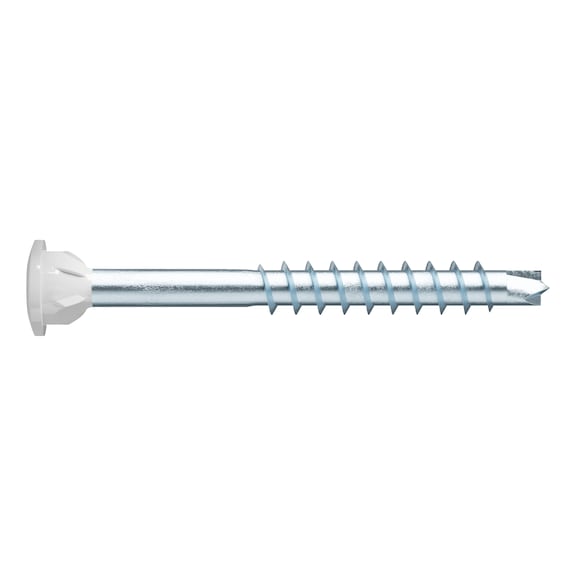

ASSY®plus 4 TH Glass Strip Screw | Hardened Zinc-Plated Steel | Partial Thread & 60° Top Head | @Pack of 500 | by Wurth
The ASSY®plus 4 TH glass strip screw is designed for precision in furniture assembly and cabinet making. Featuring a partially threaded design and a small white top head, it ensures gap-free mounting close to edges of delicate materials. Ideal for professionals, this screw offers advanced centering drill tips and milling ribs to prevent splitting, making it perfect for interior fittings and store construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 TH Glass Strip Screw | Hardened Zinc-Plated Steel | Partial Thread & 60° Top Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 17884330
Alternatively Known As: Glass strip screw, partial thread wood screw, white top head screw, furniture screw, cabinet screw, interior fitting screw
Technical Specifications
- Dimensions (H x L x W): 3.3mm x 30mm x 5.2mm
- Weight: 0.055 kg
Key Features
- Partially threaded wood screw with small white top head and milling ribs for gap-free mounting close to edges of delicate glass strips or skirting boards.
- Ideal power transmission due to RW recess and larger contact surface at the bit.
- Tight-fit recess and perfect bit fit allow one-handed working and precise positioning.
- Compatibility with previous AW drive and fewer bit changes needed.
- Advanced centring drill tip for precise positioning and clean, chip-free drilling.
- Powerful drilling cutting edges similar to Forstner bit.
- Centring pin prevents slipping on hard surfaces.
- Gentle thread start for quick screwing.
- Small lens-shaped rounded white painted screw head for stylish, unobtrusive mounting.
- Milling ribs prevent splitting of narrow wooden profiles.
- Asymmetrical single thread ensures maximum reliability and excellent anchorage in wood.
- Coordinated heat treatment guarantees high strength and ductility.
Professional Installation Requirements
- Recommended installation by professionals or skilled personnel familiar with wood screw applications for optimal performance and safety.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads) for construction applications.
Environmental Benefits
- RoHS-compliant, ensuring restriction of hazardous substances.
- Durable hardened steel construction reduces need for frequent replacements.
Warranty Information
Warranty details available upon request from Wurth; product approved under ETA-11/0190.
Available Now
Available for immediate purchase, ideal for furniture, cabinet, and interior fitting applications.
