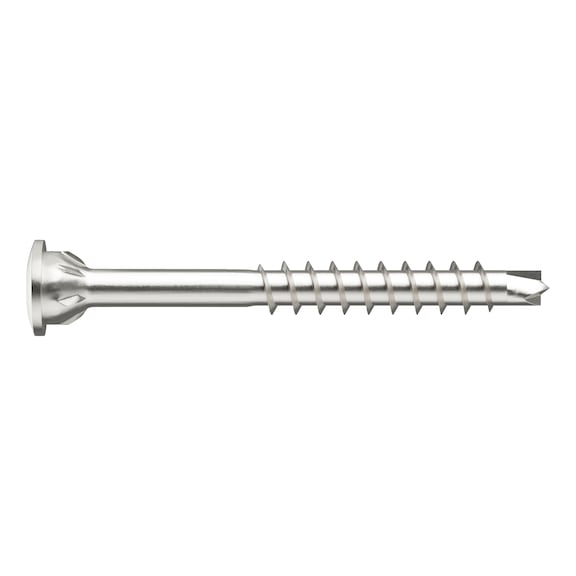

ASSYplus 4 TH Glass Strip Screw | Nickel Plated Steel | Partial Thread Design | 500 PCS | by Wurth
The ASSYplus 4 TH glass strip screw is designed for precision fastening in furniture assembly and cabinet making. Featuring a nickel-plated steel construction and a special partial-thread design, it ensures optimal power transmission and prevents splitting of delicate materials. Ideal for professionals, this screw is perfect for interior fittings and exhibition stand construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus 4 TH Glass Strip Screw | Nickel Plated Steel | Partial Thread Design | 500 PCS | by Wurth
Brand: Wurth
SKU: 17885340
Alternatively Known As: Glass strip screw, partial thread wood screw, nickel plated screw, top head screw, furniture screw, skirting board screw
Technical Specifications
- Dimensions (H x L x W): 3.3mm x 40mm x 5.2mm
- Weight: 0.0015 kg
Key Features
- Special partial-thread screw with small top head and milling ribs for gap-free fastening close to edges of delicate glass strips or skirting boards
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess and perfect bit fit for precise positioning and one-handed working
- Compatibility with previous AW drive
- Advanced centring drill tip for precise positioning and clean drilling without chipping
- Drilling cutting edges similar to Forstner bits for maximum drilling performance
- Centring pin prevents slipping on hard surfaces
- Gentle thread start for quick screwing
- Small lens-shaped rounded head for unobtrusive mounting
- Milling ribs prevent splitting of narrow wooden profiles
- Asymmetrical single thread for maximum screw connection reliability
- Optimized drill tip and thread geometry for excellent anchoring in wood
- High strength and ductility due to adjusted heat treatment
- Nickel plated hardened steel material
Professional Installation Requirements
- Recommended installation by professionals familiar with wood screw applications to ensure optimal fastening and avoid damage to delicate materials.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable nickel plating extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; product approved under ETA-11/0190.
Available Now
The Wurth ASSYplus 4 TH glass strip screw is available for immediate purchase, ideal for furniture, cabinet, and interior fitting applications.
