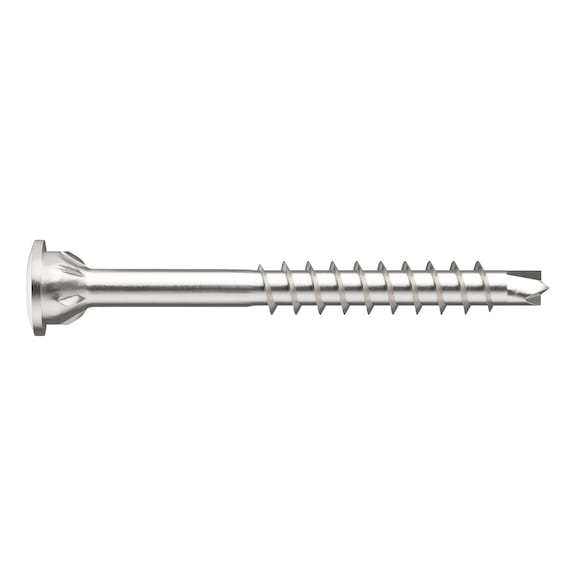

ASSYplus 4 TH Glass Strip Screw Nickel Plated Steel Partial Thread & Top Head Wurth
The ASSYplus 4 TH glass strip screw is designed for precision fastening in furniture assembly and interior construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal diameter: 3 mm
- Length: 30 mm
- Thread length: 14 mm
- Screw-thread length with drill tip: 17.5 mm
- Head type: Top head 60 degree with milling ribs
- Head diameter: 5.2 mm
- Head height: 3.3 mm
- Internal drive: RW10
- Thread type: Wood screw thread, partial thread
- Thread form: Single start thread
- Core diameter: 2.1 mm
- Tip shape: Drilling tip
- Material: Hardened steel
- Surface finish: Nickel plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood
- Approval: ETA-11/0190
- Product weight per item: 1.107 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.3mm x 30mm x 5.2mm
- Weight: 0.0011 kg
Key Features
- Special partial-thread screw with small top head and milling ribs for gap-free fastening close to edges of delicate glass strips or skirting boards
- Ideal power transmission thanks to RW drive with larger contact area at the bit
- More stability and precise positioning due to tight-fit recess and perfect bit fit
- Compatibility with previous AW drive
- Advanced centring drill tip for precise positioning and very clean drilling without chipping
- Maximum drilling performance with cutting edges similar to Forstner bits
- Centring pin prevents slipping on hard surfaces
- Quick screwing due to gentle start of thread
- Small lens-shaped rounded screw head for unobtrusive mounting
- Highly effective milling ribs prevent splitting of narrow wooden profiles
- Asymmetrical single thread for maximum reliability and excellent anchoring in wood
- Adjusted heat treatment guarantees high strength and ductility
- Nickel plated hardened steel material
Professional Installation Requirements
- Professional installation recommended for optimal fastening and safety, especially in furniture and interior construction applications.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable nickel plating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSYplus 4 TH glass strip screw is available for immediate purchase, ideal for furniture, cabinet, and interior construction applications.
