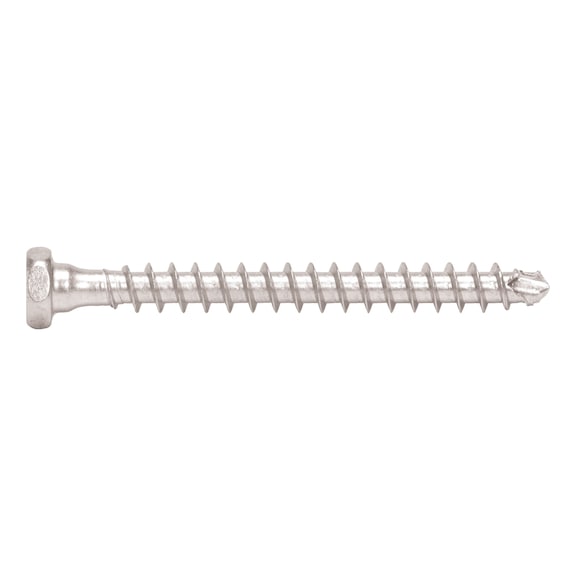

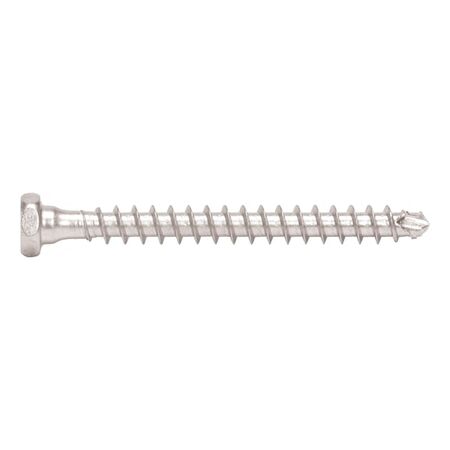

ASSY®plus FT Combination Timber Screw | Hardened Steel | Flared Shaft Neck | Combi Head with AW Drive | @Pack of 50 | by Wurth
The ASSY®plus FT combination timber screw is designed for robust timber construction, featuring a flared shaft neck for secure 90° steel/wood connections and a hardened steel body with a blue passivated surface. Ideal for professionals, this pack of 50 screws ensures high load-bearing capacity and easy installation in various wooden materials, making it perfect for structural woodwork and element construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus FT Combination Timber Screw | Hardened Steel | Flared Shaft Neck | Combi Head with AW Drive | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 165301016
Alternatively Known As: Timber construction screw, Steel to wood screw, Structural timber screw, ASSY plus FT screw, Combination wood screw
Technical Specifications
- Dimensions (H x L x W): 5mm x 160mm x 10mm
- Weight: 0.15 kg
Key Features
- Flared shaft neck for installing 90° steel/wood connections subject to shear and tensile forces
- Hardened steel with blue passivated (A3K) surface
- Combi head with AW drive for high power transmission and precise fit
- End mill and drill bit tip for easy screwing and reduced torque
- Full symmetrical thread for high load-bearing capacity
- Plastic non-friction coating enables easy screwing and reduces screw-in torque
- Suitable for use in wood, derived timber products, softwood, board plywood, hardwood, and LVL
- Approved for hardwood, KERTO/LVL, cross laminated timber, and other wooden materials
- Application in utilisation class 1 and 2 in line with EN 1995:2013
- Max screw-in angle 90°, min screw-in angle 0°
- RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
- Recommended installation by professionals familiar with timber and metal connections to ensure structural integrity and compliance with standards.
Applications
- Timber construction
- Timber panel construction
- Metal wood connections
- Post screws
- Structural woodwork
- Element construction
- Bridge construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
The Wurth ASSY®plus FT Combination Timber Screw 50 PCS is available for immediate purchase, ideal for timber and structural woodwork applications.
