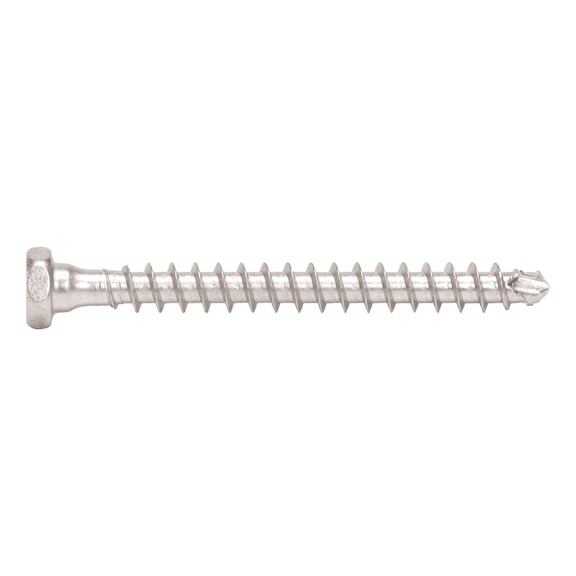

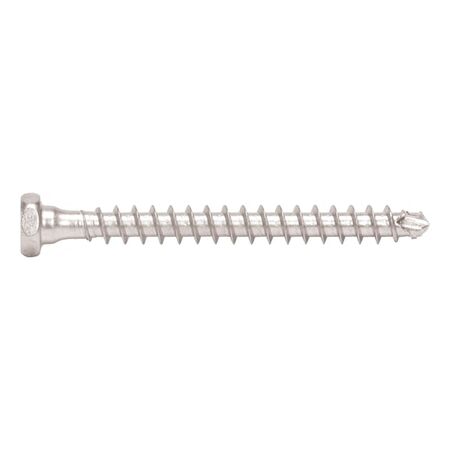

ASSY®plus FT Combination Timber Screw | Hardened Steel | Flared Shaft Neck | Combi Head Design | @Pack of 75 | by Wurth
The ASSY®plus FT combination timber screw is designed for timber construction, featuring a hardened steel body and a flared shaft neck for secure 90° steel/wood connections. Ideal for professionals, this screw ensures high power transmission and precise fit, making it perfect for structural woodwork and metal connections. Its innovative design reduces the number of screws needed while providing exceptional resistance to extraction and shear forces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus FT Combination Timber Screw | Hardened Steel | Flared Shaft Neck | Combi Head Design | @Pack of 75 | by Wurth
Brand: Wurth
SKU: 165301810
Alternatively Known As: Timber construction screw, Steel to wood screw, Structural timber screw, ASSY plus FT screw, Combination timber screw
Technical Specifications
- Dimensions (H x L x W): 4.5mm x 100mm x 8mm
- Weight: 0.3 kg
Key Features
- Flared shaft neck for installing 90° steel/wood connections subject to shear and tensile forces
- Hardened steel with blue passivated (A3K) surface
- Combi head with AW drive for high power transmission and precise fit
- End mill and full thread design with drill bit tip
- Connects wood without splitting
- Ideal for mounting steel elements stressed with shear loads on wood
- High resistance to extraction and shear reduces number of screws needed
- Hexagonal combi head with integrated shank expansion for ideal fit in round holes
- Suitable for universal use with screw-in angle 0°–90°
- Approved for hardwood, KERTO/LVL, cross laminated timber, and other wooden materials
- Application in utilisation class 1 and 2 in line with EN 1995:2013
- Plastic non-friction coating enables easy screwing and reduces screw-in torque
- Extremely short drill tip
Professional Installation Requirements
- Professional installation recommended to ensure correct screw placement and optimal structural integrity.
Applications
- Timber construction
- Timber panel construction
- Metal wood connections
- Post screws
- Structural woodwork
- Element construction
- Bridge construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduced metal formats and wooden cross sections due to short edge distances
- Lower number of screws required due to high resistance, reducing material usage
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Warranty information available upon request from Wurth.
Available Now
The Wurth ASSY®plus FT Combination Timber Screw 75 PCS is available for immediate purchase, ideal for timber and structural woodwork applications.
