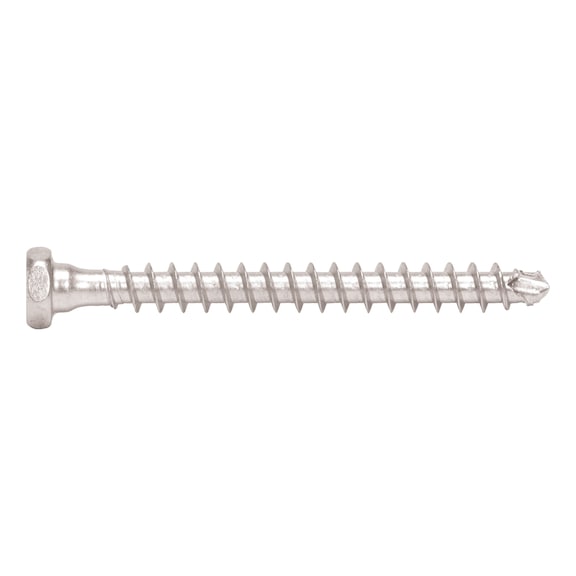

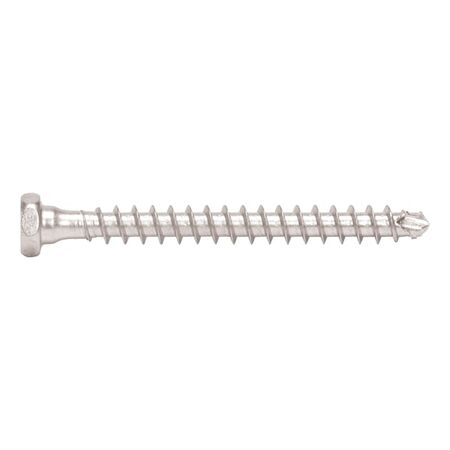

ASSY®plus FT Combination Timber Screw | Hardened Steel | Hexagon Head | Full Thread | @Pack of 50 | by Wurth
The ASSY®plus FT combination timber screw is designed for high-strength timber and steel-to-wood connections. With a hardened steel construction and a hexagon head for precise fit, it ensures reliable fastening in various applications, including timber construction and structural woodwork. Its full symmetrical thread and drilling tip reduce splitting and enhance load-bearing capacity, making it ideal for professionals seeking durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus FT Combination Timber Screw | Hardened Steel | Hexagon Head | Full Thread | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 165301010
Alternatively Known As: Combination timber screw, ASSY plus FT screw, Steel to wood screw, Timber construction screw, Hex head timber screw
Technical Specifications
- Nominal diameter: 10 mm
- Length: 100 mm
- Head type: Hexagon head
- Head height: 5 mm
- External drive: WS15
- Internal drive: AW40
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length: 80 mm
- Screw-thread length with drill tip: 80 mm
- Material: Hardened steel
- Surface: Zinc plated
- Core diameter: 6.2 mm
- Shape of tip: Drilling tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 5mm x 100mm x 10mm
- Weight: 0.15 kg
Key Features
- Flared shaft neck for installing 90° steel/wood connections subject to shear and tensile forces
- Hardened steel with blue passivated (A3K) surface
- Combi head with AW drive for high power transmission and precise fit
- End mill and drill bit tip for easy screwing and reduced splitting
- Full symmetrical thread for high load-bearing capacity
- Plastic non-friction coating reduces screw-in torque
- Suitable for use in wood, derived timber products, softwood, board plywood, hardwood, and LVL
- Approval ETA-11/0190 for hardwood, KERTO/LVL, cross laminated timber, and other wooden materials
- Screw-in angle range from 0° to 90°
- RoHS-compliant
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Timber construction
- Timber panel construction
- Metal wood connections
- Post screws
- Structural woodwork
- Element construction
- Bridge construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable hardened steel construction reduces the need for frequent replacements
- RoHS-compliant, ensuring reduced hazardous substances
- Efficient installation reduces waste and material usage
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth ASSY®plus FT Combination Timber Screw 50 PCS is available now for immediate purchase. Ideal for timber and steel to wood construction applications requiring high strength and precision.
