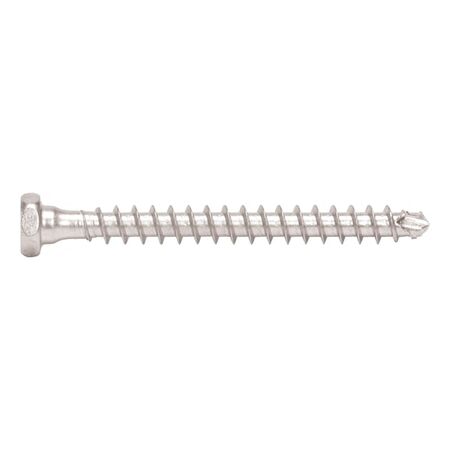

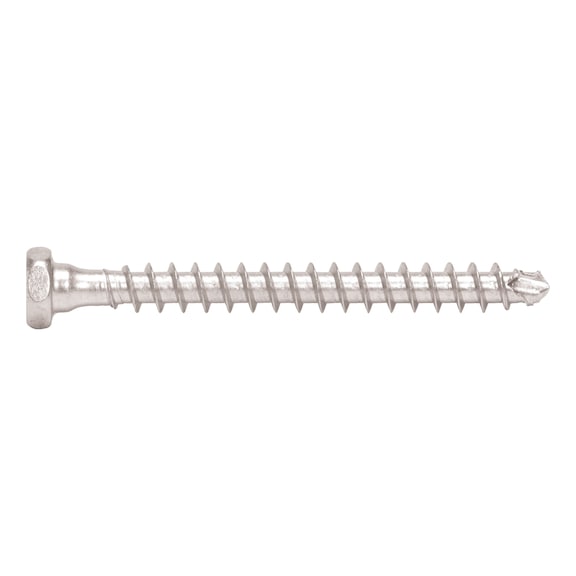

ASSY®plus FT Combination Timber Screw | Hexagon Head | Hardened Steel | Zinc Plated | @Pack of 50 | by Wurth
The ASSY®plus FT combination timber screw is designed for robust timber and metal-wood connections, featuring a hexagon head and hardened steel construction. With a flared shaft neck and full thread design, it ensures high load-bearing capacity and easy installation without splitting wood. Ideal for professional tradespeople in timber construction and structural woodwork, this pack of 50 screws is perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus FT Combination Timber Screw | Hexagon Head | Hardened Steel | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 165301214
Alternatively Known As: Combination timber screw, ASSY plus FT screw, steel to wood screw, timber construction screw, hexagon head timber screw
Technical Specifications
- Nominal diameter: 12 mm
- Length: 140 mm
- Head type: Hexagon head
- Head height: 5.5 mm
- External drive: WS17
- Internal drive: AW40
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length: 118 mm
- Screw-thread length with drill tip: 118 mm
- Material: Hardened steel
- Surface: Zinc plated
- Core diameter: 7.1 mm
- Shape of tip: Drilling tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 5.5mm x 140mm x 12mm
- Weight: 0.15 kg
Key Features
- Flared shaft neck for installing 90° steel/wood connections subject to shear and tensile forces
- Hardened steel with blue passivated (A3K) surface
- Combi head with AW drive for high power transmission and precise fit
- End mill and full thread design with drill bit tip to connect wood without splitting
- Suitable for use in wood, derived timber products, softwood, board plywood (BSP), hardwood, and LVL
- Symmetrical full thread for high load-bearing capacity
- Plastic non-friction coating enables easy screwing and reduces screw-in torque
- Approved for hardwood, KERTO/LVL, cross laminated timber, and other wooden materials
- Application in utilisation class 1 and 2 in line with EN 1995:2013
- Max screw-in angle 90°, min screw-in angle 0°
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct screw placement and structural integrity.
Applications
- Timber construction
- Timber panel construction
- Metal wood connections
- Post screws
- Structural woodwork
- Element construction
- Bridge construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable hardened steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
- Enables strong, compact connections reducing material waste
Warranty Information
Wurth offers standard manufacturer warranty covering defects in materials and workmanship.
Available Now
The Wurth ASSY®plus FT Combination Timber Screw 50 PCS is available now for immediate purchase. Ideal for timber and metal-wood structural connections in construction and carpentry.
