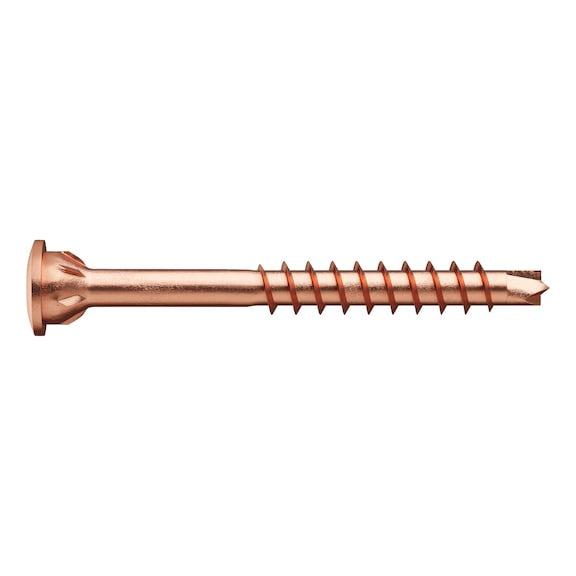

ASSYplus 4 TH Glass Strip Screw | Hardened Burnished Steel | Partial Thread & Top Head | @Pack of 500 | by Wurth
The ASSYplus 4 TH glass strip screw is designed for precision fastening in furniture assembly and cabinet making. With a hardened burnished steel construction and a unique partial thread design, it ensures optimal power transmission and prevents splitting of delicate materials. Ideal for professional tradespeople, this screw offers a gentle start for quick screwing and is perfect for interior fittings and exhibition stand construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus 4 TH Glass Strip Screw | Hardened Burnished Steel | Partial Thread & Top Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 17883335
Alternatively Known As: Glass strip screw, partial thread wood screw, top head screw, RW10 drive screw, furniture screw, cabinet screw
Technical Specifications
- Nominal diameter: 3 mm
- Length: 35 mm
- Thread length: 16 mm
- Screw-thread length with drill tip: 19.5 mm
- Head type: Top head 60 degree with milling ribs
- Head diameter: 5.2 mm
- Head height: 3.3 mm
- Internal drive: RW10
- Thread type: Wood screw thread, partial thread
- Thread design: Single start thread
- Core diameter: 2.1 mm
- Tip shape: Drilling tip
- Material: Hardened steel
- Surface finish: Burnished
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.3mm x 35mm x 5.2mm
- Weight: 0.00127 kg
Key Features
- Special partial thread screw with small top head and milling ribs
- Suitable for gap-free fastening close to edges of delicate glass strips or skirting boards
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Advanced centring drill tip for precise positioning and clean drilling without chipping
- Drilling cutting edges similar to Forstner bits for maximum drilling performance
- Centring pin prevents slipping on hard surfaces
- Gentle start of thread for quick screwing
- Small lens-shaped rounded head for unobtrusive mounting
- Milling ribs prevent splitting of narrow wooden profiles
- Asymmetrical single thread for maximum reliability
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flanks
Professional Installation Requirements
- Installation by a professional or skilled tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for furniture, cabinet, and interior construction applications.
