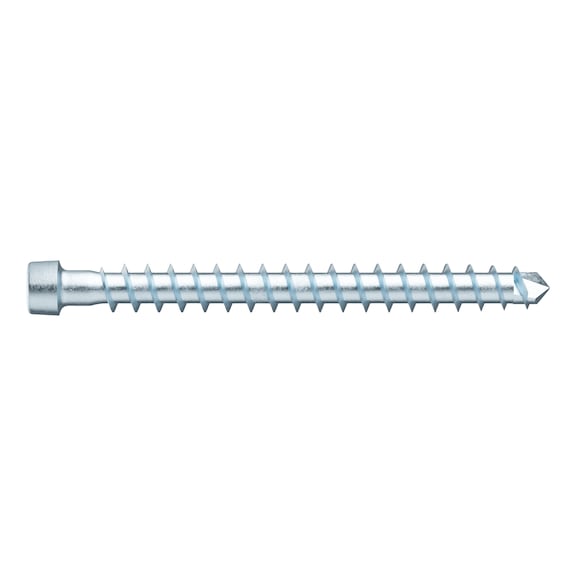

ASSY®plus VG 4 CH Construction Screw | Full Thread & Cylinder Head | High Load Capacity | @Pack of 100 | by Wurth
ASSY®plus VG 4 CH construction screws are designed for high-load-bearing wood connections, featuring a full thread and small cylinder head for unobtrusive mounting. Ideal for structural woodwork and reinforcement applications, these screws ensure excellent power transmission and stability, making them perfect for both indoor dry and wet areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus VG 4 CH Construction Screw | Full Thread & Cylinder Head | High Load Capacity | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 150006220
Alternatively Known As: Structural wood screw, Full thread wood screw, Cylinder head wood screw, Zinc plated construction screw, High load wood screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 220 mm
- Thread length: 203 mm
- Head type: Socket head
- Head diameter: 8.2 mm
- Head height: 4.7 mm
- Internal drive: RW30
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 3.8 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Approval: ETA-11/0190
- Product weight per item: 25.830 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.7mm x 220mm x 8.2mm
- Weight: 0.026 kg
Key Features
- Full-thread screw with small cylinder head for high-load-bearing wood-wood connections or reinforcements in structural wood construction
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- More stability and precise positioning due to tight-fit recess and perfect bit fit
- Compatibility with previous AW drive
- Small head diameter for unobtrusive mounting
- Low splitting effect when countersinking the screw head
- Symmetrical high-performance thread matched to drill bit tip pre-drilling performance
- Extremely short permitted edge distances (e.g., 3xd)
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility due to adjusted heat treatment
- Suitable for indoor dry or wet areas
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct application and structural integrity.
Applications
- Structural woodwork
- Transverse reinforcement
- On rafter insulation
- Lateral compression reinforcement
- Beam reinforcement
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
Wurth ASSY®plus VG 4 CH construction screws are available for immediate purchase, ideal for structural wood construction and reinforcement applications.
