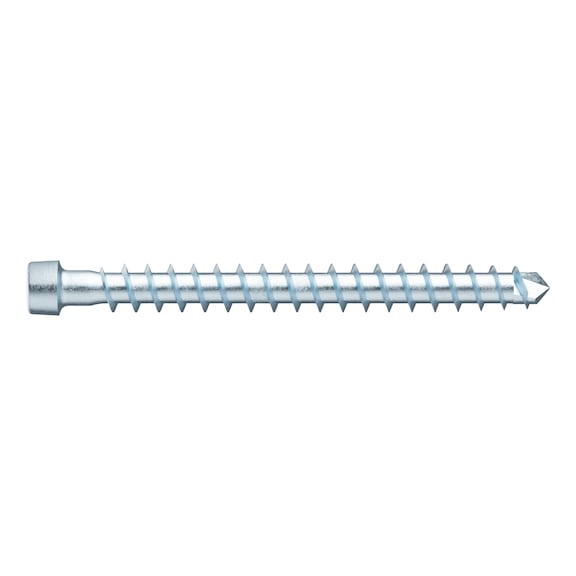

ASSY®plus VG 4 CH Construction Screw | Full Thread & Zinc Plated | High Load-Bearing | @Pack of 100 | by Wurth
The ASSY®plus VG 4 CH construction screw is designed for high-load-bearing wood connections, featuring a full thread and a durable zinc plating. Ideal for structural woodwork and transverse reinforcement, this screw ensures optimal power transmission and stability, making it perfect for professional applications. With no pre-drilling required, it simplifies installation while maintaining structural integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus VG 4 CH Construction Screw | Full Thread & Zinc Plated | High Load-Bearing | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 150006140
Alternatively Known As: Full Thread Wood Screw, Structural Wood Screw, Zinc Plated Construction Screw, Cylinder Head Wood Screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 140 mm
- Thread length: 123 mm
- Head type: Socket head
- Head diameter: 8.2 mm
- Head height: 4.7 mm
- Internal drive: RW30
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 3.8 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Approval: ETA-11/0190
- Product weight per item: 16.960 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.7mm x 140mm x 8.2mm
- Weight: 0.017 kg
Key Features
- Full-thread screw with small cylinder head for high-load-bearing wood-wood connections or reinforcements in structural wood construction
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- More stability and precise positioning due to tight-fit recess and perfect bit fit
- Compatibility with previous AW drive
- Small head diameter for unobtrusive mounting
- Low splitting effect when countersinking the screw head
- Symmetrical high-performance thread matched to drill bit tip pre-drilling performance
- Extremely short permitted edge distances (e.g., 3xd)
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility due to adjusted heat treatment
- Suitable for indoor dry or wet areas
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct application and structural integrity.
Applications
- Structural woodwork
- Transverse reinforcement
- On rafter insulation
- Lateral compression reinforcement
- Beam reinforcement
- Carrier doubling
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
The Wurth ASSY®plus VG 4 CH construction screw is available for immediate purchase, ideal for structural wood construction and reinforcement applications.
