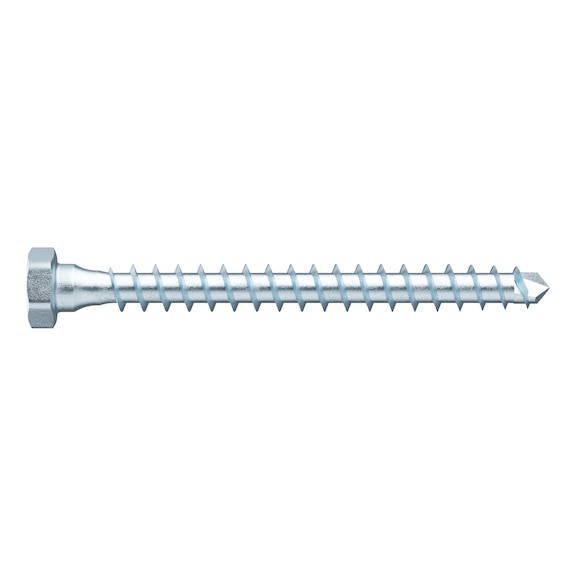

ASSY®plus VG 4 COMBI Construction Screw | Full Thread Hexagon Head | High Load Capacity | Zinc Plated | @Pack of 50 | by Wurth
ASSY®plus VG 4 COMBI construction screws are designed for high-load timber and metal-wood connections, featuring a full thread and hexagon head for superior grip. Ideal for structural wood construction, these screws eliminate the need for pre-drilling, ensuring easy installation without splitting wood. With RoHS compliance and durable zinc plating, they offer long-lasting performance in both dry and wet environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus VG 4 COMBI Construction Screw | Full Thread Hexagon Head | High Load Capacity | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 150210140
Alternatively Known As: Construction screw, Structural wood screw, Metal-wood connection screw, Hex head wood screw, Full thread timber screw
Technical Specifications
- Nominal diameter: 10 mm
- Length: 140 mm
- Head type: Hexagon head
- Head height: 5 mm
- External drive: WS15
- Internal drive: RW40
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length: 120 mm
- Screw-thread length with drill tip: 120 mm
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Core diameter: 6.2 mm
- Tip shape: Drilling tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 5mm x 140mm x 10mm
- Weight: 0.15 kg
Key Features
- Full-thread screw with hexagon head and underside shank reinforcement for high-load-bearing metal-wood connections
- Ideal for structural wood construction requiring small edge and screw clearances in indoor dry or wet areas
- RW drive for ideal power transmission and more power due to larger contact area at the bit
- Tight-fit recess and perfect bit fit for more stability, one-handed working, and precise positioning
- Compatibility with previous AW drive and flexible assembly with high power transmission
- Combination of hexagon head and RW drive with reinforced shaft attachment
- Symmetrical high-performance thread matched to pre-drilling performance of drill bit tip
- Extremely short permitted edge distances (e.g., 3xd), usable for beam widths 60 mm
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility due to adjusted heat treatment
- RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct torque and secure fastening in structural applications.
Applications
- Timber construction
- Timber panel construction
- Metal wood connections
- Post screws
- Structural woodwork
- Element construction
- Bridge construction
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
- No pre-drilling reduces energy and tool wear
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY®plus VG 4 COMBI construction screws are available for immediate purchase, ideal for high-load timber and metal-wood structural connections.
