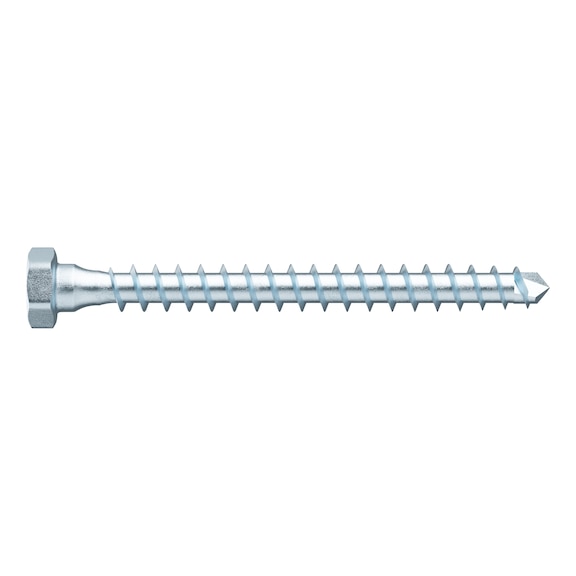

ASSY®plus VG 4 COMBI Construction Screw | Full Thread Hexagon Head | Zinc Plated | @Pack of 50 | by Wurth
The ASSY®plus VG 4 COMBI construction screw is designed for high-load-bearing metal-wood connections, featuring a full thread and hexagon head for optimal power transmission. Ideal for timber construction and structural woodwork, this screw eliminates the need for pre-drilling, ensuring a secure fit without splitting wood. With RoHS compliance and durable zinc plating, it’s perfect for professionals seeking reliability and efficiency in their projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus VG 4 COMBI Construction Screw | Full Thread Hexagon Head | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 150210160
Alternatively Known As: Construction screw, Wood screw, Hex head screw, Metal-wood connection screw, Structural timber screw
Technical Specifications
- Nominal diameter (d): 10 mm
- Length (l): 160 mm
- Head type: Hexagon head
- Head height (k): 5 mm
- External drive: WS15
- Internal drive: RW40
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length (lg): 140 mm
- Screw-thread length with drill tip (b): 140 mm
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Core diameter: 6.2 mm
- Shape of tip: Drilling tip
- Max. screw-in angle: 90 Degree
- Min. screw-in angle: 0 Degree
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 5mm x 160mm x 10mm
- Weight: 0.2 kg
Key Features
- Full-thread screw with hexagon head and underside shank reinforcement for high-load-bearing metal-wood connections
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Combination of hexagon head and RW drive with reinforced shaft attachment
- Symmetrical high-performance thread matched to drill bit tip pre-drilling performance
- Extremely short permitted edge distances (e.g., 3xd)
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility due to adjusted heat treatment
- RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct application and structural integrity.
Applications
- Timber construction
- Timber panel construction
- Metal wood connections
- Post screws
- Structural woodwork
- Element construction
- Bridge construction
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth ASSY®plus VG 4 COMBI construction screw is available for immediate purchase, ideal for structural timber and metal-wood connection applications.
