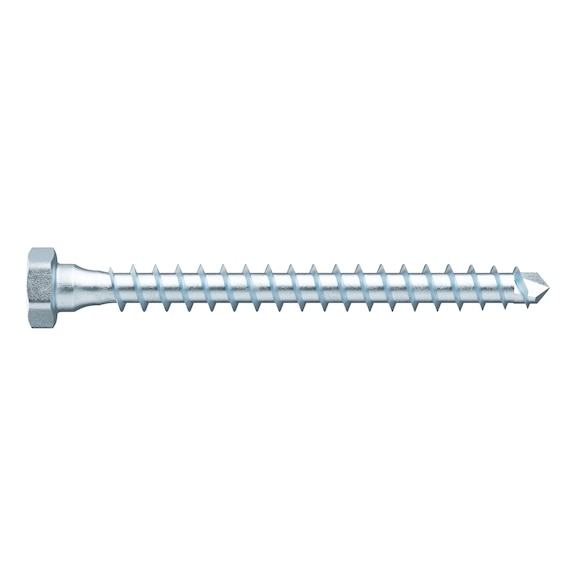

ASSY®plus VG 4 COMBI Construction Screw | Full Thread Hexagon Head | Zinc Plated | @Pack of 50 | by Wurth
The ASSY®plus VG 4 COMBI construction screw is designed for high-load-bearing metal-wood connections, featuring a full thread and hexagon head for optimal power transmission. Ideal for timber construction and structural woodwork, this screw eliminates the need for pre-drilling, ensuring a secure fit without splitting wood. With RoHS compliance and durable zinc plating, it’s perfect for professional applications requiring reliability and strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus VG 4 COMBI Construction Screw | Full Thread Hexagon Head | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 150212120
Alternatively Known As: Construction screw, Wood screw, Metal-wood screw, Hex head screw, Full thread screw, Structural timber screw
Technical Specifications
- Nominal diameter (d): 12 mm
- Length (l): 120 mm
- Head type: Hexagon head
- Head height (k): 5.5 mm
- External drive: WS17
- Internal drive: RW40
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length (lg): 98 mm
- Screw-thread length with drill tip (b): 98 mm
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Core diameter: 7.1 mm
- Shape of tip: Drilling tip
- Max. screw-in angle: 90 Degree
- Min. screw-in angle: 0 Degree
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 5.5mm x 120mm x 12mm
- Weight: 0.15 kg
Key Features
- Full-thread screw with hexagon head and underside shank reinforcement for high-load-bearing metal-wood connections
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess and perfect fit of the bit for precise positioning and one-handed working
- Compatibility with previous AW drive
- Combination of hexagon head and RW drive with reinforced shaft attachment
- Symmetrical high-performance thread matched to the pre-drilling performance of the drill bit tip
- Extremely short permitted edge distances (e.g., 3xd), usable for beam widths 60 mm
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility due to adjusted heat treatment
- RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct application and structural integrity.
Applications
- Timber construction
- Timber panel construction
- Metal wood connections
- Post screws
- Structural woodwork
- Element construction
- Bridge construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth ASSY®plus VG 4 COMBI construction screw is available now for immediate purchase. Ideal for structural timber and metal-wood connection applications.
