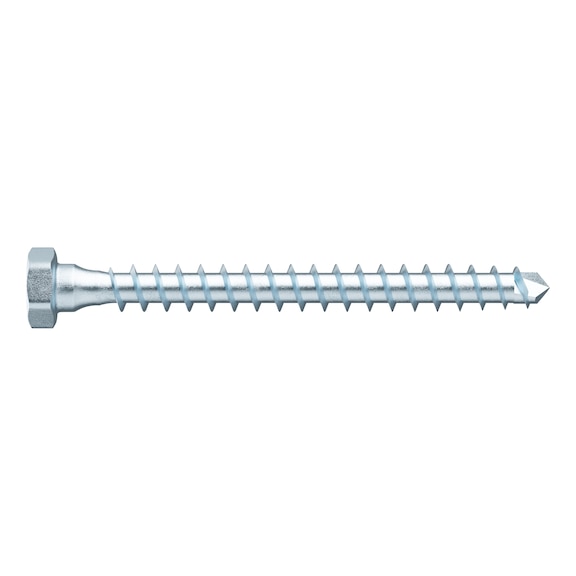

ASSY®plus VG 4 COMBI Construction Screw | Full Thread Hexagon Head | Zinc Plated | @Pack of 75 | by Wurth
The ASSY®plus VG 4 COMBI construction screw is designed for high-load timber and metal-wood connections, featuring a full thread and hexagon head for enhanced stability. Ideal for structural wood construction, this screw eliminates the need for pre-drilling, ensuring a secure fit without splitting the wood. With its zinc plating, it offers excellent corrosion resistance, making it perfect for long-lasting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus VG 4 COMBI Construction Screw | Full Thread Hexagon Head | Zinc Plated | @Pack of 75 | by Wurth
Brand: Wurth
SKU: 150208080
Alternatively Known As: Construction screw, Structural wood screw, Metal-wood connection screw, Hex head wood screw, Full thread timber screw
Technical Specifications
- Nominal diameter (d): 8 mm
- Length (l): 80 mm
- Head type: Hexagon head
- Head height (k): 4.5 mm
- External drive: WS12
- Internal drive: RW40
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length (lg): 67 mm
- Screw-thread length with drill tip (b): 67 mm
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Core diameter: 5 mm
- Shape of tip: Drilling tip
- Max. screw-in angle: 90 degrees
- Min. screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 4.5mm x 80mm x 8mm
- Weight: 0.15 kg
Key Features
- Full-thread screw with hexagon head and underside shank reinforcement for high-load-bearing metal-wood connections
- Suitable for structural wood construction requiring small edge and screw clearances
- Ideal power transmission thanks to RW drive with larger contact area at the bit
- More stability and precise positioning due to tight-fit recess and perfect bit fit
- Compatibility with previous AW drive
- Combination of hexagon head and RW drive with reinforced shaft attachment
- Symmetrical high-performance thread matched to pre-drilling performance of drill bit tip
- Extremely short permitted edge distances (e.g., 3xd), usable for beam widths 60 mm
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility due to adjusted heat treatment
- RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct torque and secure fastening in structural applications.
Applications
- Timber construction
- Timber panel construction
- Metal wood connections
- Post screws
- Structural woodwork
- Element construction
- Bridge construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
- High strength and ductility reduce material waste by ensuring durable connections
- No pre-drilling reduces energy and tool wear during installation
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth ASSY®plus VG 4 COMBI construction screw is available for immediate purchase, ideal for high-load timber and metal-wood structural connections.
