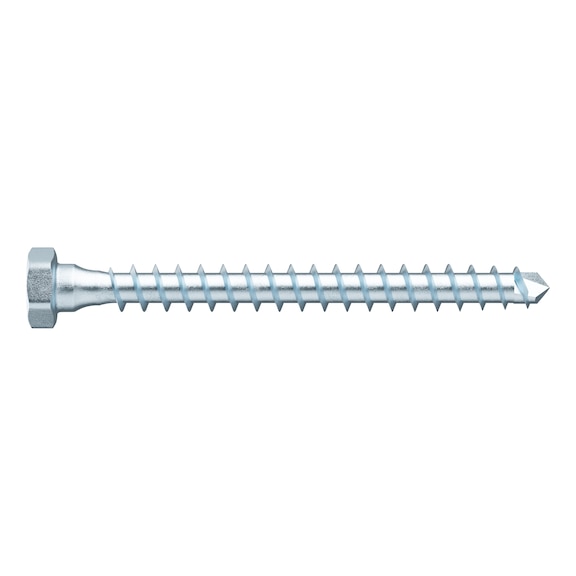

ASSY®plus VG 4 COMBI Construction Screw | Full Thread Hexagon Head | Zinc Plated | @Pack of 75 | by Wurth
ASSY®plus VG 4 COMBI construction screws are designed for high-load-bearing metal-wood connections, featuring a full thread and hexagon head. Ideal for timber construction and structural woodwork, these screws eliminate the need for pre-drilling and ensure precise positioning with their RW drive. Built from hardened steel and zinc plated for corrosion resistance, they are perfect for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus VG 4 COMBI Construction Screw | Full Thread Hexagon Head | Zinc Plated | @Pack of 75 | by Wurth
Brand: Wurth
SKU: 150208100
Alternatively Known As: Construction screw, Structural wood screw, Metal-wood connection screw, Hex head wood screw, Full thread timber screw
Technical Specifications
- Nominal diameter: 8 mm
- Length: 100 mm
- Head type: Hexagon head
- Head height: 4.5 mm
- External drive: WS12
- Internal drive: RW40
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length: 87 mm
- Screw-thread length with drill tip: 87 mm
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Core diameter: 5 mm
- Tip shape: Drilling tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 4.5mm x 100mm x 8mm
- Weight: 0.15 kg
Key Features
- Full-thread screw with hexagon head and underside shank reinforcement for high-load-bearing metal-wood connections.
- Ideal for structural wood construction requiring small edge and screw clearances in indoor dry or wet areas.
- RW drive for ideal power transmission with larger contact area at the bit.
- Tight-fit recess and perfect bit fit allow one-handed working and precise positioning.
- Compatible with previous AW drive and flexible assembly with high power transmission.
- Combination of hexagon head and RW drive with reinforced shaft attachment.
- Symmetrical high-performance thread matched to drill bit tip pre-drilling performance.
- Extremely short permitted edge distances (e.g., 3xd) making screws usable for beam widths of 60 mm.
- No pre-drilling required, wood does not split or rupture.
- High strength values and ductility due to adjusted heat treatment.
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct application and structural integrity.
Applications
- Timber construction
- Timber panel construction
- Metal wood connections
- Post screws
- Structural woodwork
- Element construction
- Bridge construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency.
- High strength and durability reduce material waste and maintenance needs.
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY®plus VG 4 COMBI construction screws are available for immediate purchase, ideal for structural timber and metal-wood connection applications.
