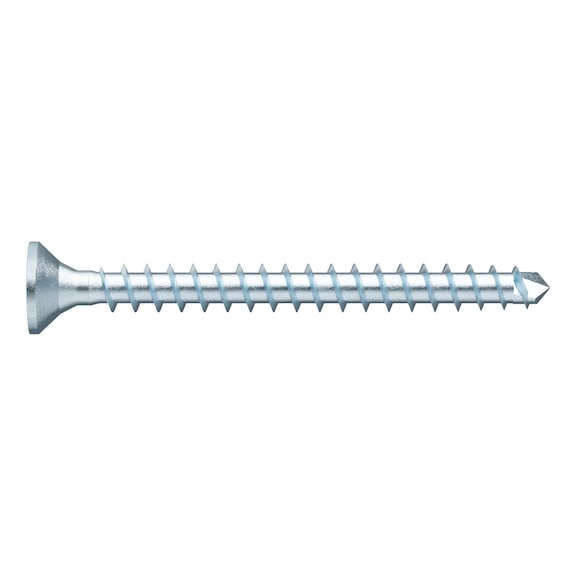

ASSYplus VG 4 CS Construction Screw | Full Thread & Countersunk Head | High Load-Bearing | by Wurth
The ASSYplus VG 4 CS construction screw is designed for high-load-bearing applications, featuring a full thread and countersunk head for universal use. Ideal for structural woodwork and metal connections, this screw ensures optimal power transmission with its RW drive, making it perfect for both indoor dry and wet areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus VG 4 CS Construction Screw | Full Thread & Countersunk Head | High Load-Bearing | by Wurth
Brand: Wurth
SKU: 150110240
Alternatively Known As: Construction screw, Wood screw, Zinc plated screw, Countersunk head screw, Full thread screw, Structural wood screw
Technical Specifications
- Nominal diameter: 10 mm
- Length: 240 mm
- Thread length: 217 mm
- Head type: Countersunk head
- Head diameter: 20 mm
- Head height: 6.5 mm
- Internal drive: RW50
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 6.2 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Additional accessory: Bit lock
- Approval: ETA-11/0190
- Product weight per item: 84.040 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.5mm x 240mm x 20mm
- Weight: 0.084 kg
Key Features
- Full-thread screw with countersunk head for universal use
- High-load-bearing wood-wood, wood-metal connections or reinforcements
- Suitable for indoor dry or wet areas
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Form-fitting connection to metal fittings or wooden products with high bulk density
- Perfect fit of 90° head in fitting parts with metal countersinks
- Pulls together without head milling due to lack of milling elements below the head
- Highest power transmission in tensile and compressive direction
- Symmetrical high-performance thread matched to drill bit tip pre-drilling performance
- Extremely short permitted edge distances (e.g., 3xd)
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility
- Adjusted heat treatment
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure structural integrity and compliance with building codes.
Applications
- Structural woodwork
- Element construction
- Timber panel construction
- Interior fitting
- Lateral compression reinforcement
- Metal wood connections
- On rafter insulation
- Roof
- Tensile shear connection
- Wood-concrete-composite
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSYplus VG 4 CS construction screw is available for immediate purchase, ideal for structural wood construction and high-load bearing applications.
