ASSYplus VG 4 CS Construction Screw | Full Thread & Countersunk Head | High Load-Bearing | @Pack of 50 | by Wurth
The ASSYplus VG 4 CS construction screw is designed for high-load-bearing wood and metal connections, featuring a full thread and countersunk head for universal use. Ideal for structural woodwork and interior fittings, this screw ensures no pre-drilling is required, preventing wood from splitting. With RW drive for optimal power transmission, it's perfect for professionals seeking reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus VG 4 CS Construction Screw | Full Thread & Countersunk Head | High Load-Bearing | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 150110140
Alternatively Known As: Structural wood screw, Countersunk head wood screw, Zinc plated construction screw, Full thread wood screw, RW drive screw
Technical Specifications
- Dimensions (H x L x W): 6.5mm x 140mm x 20mm
- Weight: 0.051 kg
Key Features
- Full-thread screw with countersunk head for universal use
- Designed for high-load-bearing wood-wood and wood-metal connections
- Suitable for indoor dry or wet areas

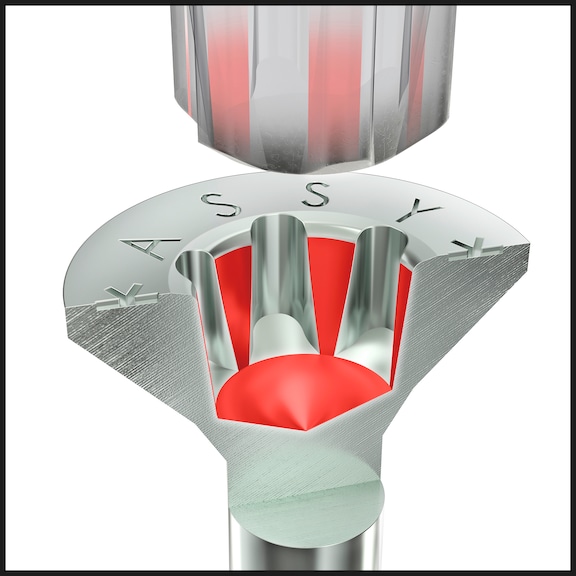

- RW drive for ideal power transmission and fewer bit changes
- Form-fitting connection to metal fittings or wooden products with high bulk density
- Perfect fit of 90° head in fitting parts with metal countersinks
- Pulls together without head milling due to lack of milling elements below the head
- Symmetrical high-performance thread matched to drill bit tip pre-drilling performance
- Extremely short permitted edge distances (e.g., 3xd)
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility with adjusted heat treatment
Professional Installation Requirements
- Recommended installation by professionals familiar with structural wood construction and appropriate screw driving tools for optimal performance.
Applications
- Structural woodwork
- Element construction
- Timber panel construction
- Interior fitting
- Lateral compression reinforcement
- Metal wood connections
- On rafter insulation
- Roof
- Tensile shear connection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plated surface extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; product complies with ETA-11/0190 approval.
Available Now
The Wurth ASSYplus VG 4 CS construction screw is available for immediate purchase, ideal for structural wood and metal connection applications.
