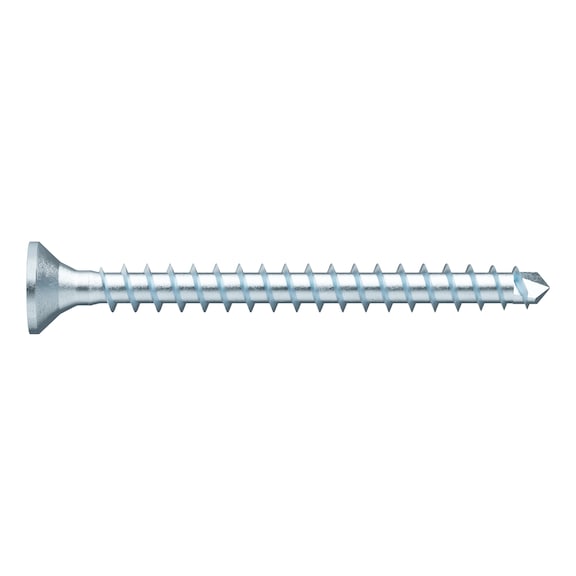

ASSYplus VG 4 CS Construction Screw | Full Thread & Countersunk Head | Zinc Plated | @Pack of 50 | by Wurth
The ASSYplus VG 4 CS construction screw is designed for high-load wood-wood and wood-metal connections, featuring a full thread and countersunk head for universal use. Ideal for structural woodwork and interior fitting, this screw ensures optimal power transmission with its RW drive and is suitable for both dry and wet areas, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus VG 4 CS Construction Screw | Full Thread & Countersunk Head | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 150110120
Alternatively Known As: Construction screw, Wood screw, Countersunk head screw, Full thread screw, Zinc plated screw, Structural wood screw
Technical Specifications
- Nominal diameter: 10 mm
- Length: 120 mm
- Thread length: 97 mm
- Head type: Countersunk head
- Head diameter: 20 mm
- Head height: 6.5 mm
- Internal drive: RW50
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 6.2 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Additional accessory: Bit lock
- Approval: ETA-11/0190
- Product weight per item: 43.540 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.5mm x 120mm x 20mm
- Weight: 0.044 kg
Key Features
- Full-thread screw with countersunk head for universal use
- Designed for high-load-bearing wood-wood and wood-metal connections
- Suitable for indoor dry or wet areas
- Ideal power transmission with RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and fewer bit changes
- Compatibility with previous AW drive
- Form-fitting connection to metal fittings or wooden products with high bulk density
- Perfect fit of 90° head in metal countersinks
- Pulls together without head milling due to lack of milling elements below the head
- Highest power transmission in tensile and compressive directions
- Symmetrical high-performance thread matched to drill bit tip pre-drilling performance
- Compact screw connections and small material cross-sections
- Extremely short permitted edge distances (e.g., 3xd)
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility
- Adjusted heat treatment
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure structural integrity and compliance with building codes.
Applications
- Structural woodwork
- Element construction
- Timber panel construction
- Interior fitting
- Lateral compression reinforcement
- Metal wood connections
- On rafter insulation
- Roof
- Tensile shear connection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSYplus VG 4 CS construction screw is available for immediate purchase, ideal for structural wood construction and high-load wood-metal connections.
