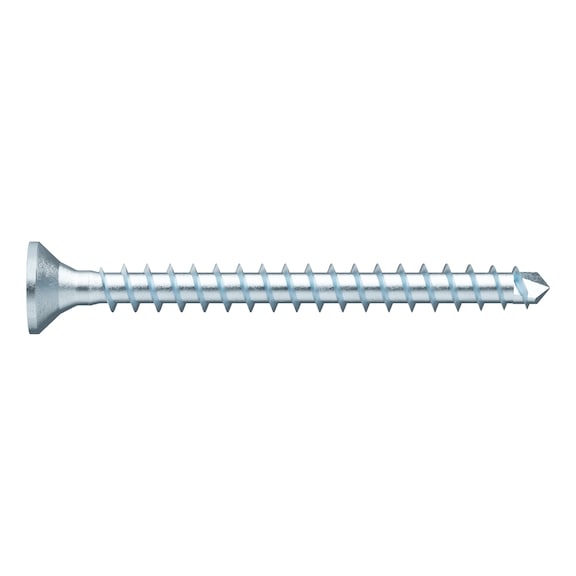

ASSYplus VG 4 CS Construction Screw | Full Thread & Countersunk Head | Zinc Plated | @Pack of 50 | by Wurth
The ASSYplus VG 4 CS construction screw is designed for high-load wood and metal connections, featuring a full thread and countersunk head for universal use. Ideal for structural woodwork and interior fitting, this screw ensures no pre-drilling is required, preventing wood splitting. With its durable zinc plating, it offers longevity and compliance with RoHS standards, making it perfect for both dry and wet areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus VG 4 CS Construction Screw | Full Thread & Countersunk Head | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 150110260
Alternatively Known As: Construction screw, Wood screw, Zinc plated screw, Countersunk head screw, Full thread screw, Structural wood screw
Technical Specifications
- Nominal diameter: 10 mm
- Length: 260 mm
- Thread length: 237 mm
- Head type: Countersunk head
- Head diameter: 20 mm
- Head height: 6.5 mm
- Internal drive: RW50
- Thread type: Wood screw thread
- Thread design: Full thread
- Core diameter: 6.2 mm
- Tip shape: Drilling tip
- Material: Hardened steel
- Surface finish: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, derived timber products, softwood, plywood, hardwood, LVL
- Additional accessory: Bit lock
- Approval: ETA-11/0190
- Product weight per item: 86.9 g
- Dimensions (H x L x W): 6.5mm x 260mm x 20mm
- Weight: 0.087 kg
Key Features
- Full-thread screw with countersunk head for universal use
- High-load-bearing wood-wood and wood-metal connections
- Suitable for indoor dry or wet areas
- Ideal power transmission with RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Form-fitting connection to metal fittings or dense wooden products
- Perfect fit of 90° head in metal countersinks
- Pulls together without head milling
- Symmetrical high-performance thread matched to drill bit tip
- No pre-drilling required, wood does not split
- High strength and ductility with adjusted heat treatment
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure structural integrity and compliance with building codes.
Applications
- Structural woodwork
- Element construction
- Timber panel construction
- Interior fitting
- Lateral compression reinforcement
- Metal wood connections
- On rafter insulation
- Roof
- Tensile shear connection
- Wood-concrete-composite
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSYplus VG 4 CS construction screw is available for immediate purchase, ideal for structural wood construction and high-load wood-metal connections.
