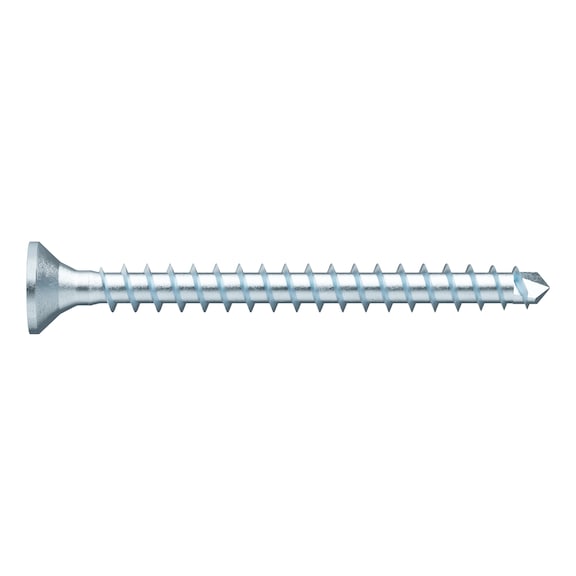

ASSYplus VG 4 CS Construction Screw | Full Thread Countersunk Head | Zinc Plated Steel | @Pack of 50 | by Wurth
The ASSYplus VG 4 CS construction screw is designed for high-load-bearing wood-wood and wood-metal connections, featuring a full thread and countersunk head for universal use. Ideal for structural woodwork and interior fitting, this screw ensures optimal power transmission with its RW drive, making it perfect for both dry and wet areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus VG 4 CS Construction Screw | Full Thread Countersunk Head | Zinc Plated Steel | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 150110280
Alternatively Known As: Structural wood screw, Full thread countersunk screw, Zinc plated construction screw, Wood-metal connection screw, ASSYplus construction screw
Technical Specifications
- Nominal diameter: 10 mm
- Length: 280 mm
- Thread length: 257 mm
- Head type: Countersunk head
- Head diameter: 20 mm
- Head height: 6.5 mm
- Internal drive: RW50
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 6.2 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Additional accessory: Bit lock
- Approval: ETA-11/0190
- Product weight per item: 90 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.5mm x 280mm x 20mm
- Weight: 0.09 kg
Key Features
- Full-thread screw with countersunk head for universal use
- High-load-bearing wood-wood and wood-metal connections
- Suitable for indoor dry or wet areas
- Ideal power transmission with RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Form-fitting connection to metal fittings or wooden products with high bulk density
- Perfect fit of 90° head in metal countersinks
- Pulls together without head milling due to lack of milling elements below the head
- Highest power transmission in tensile and compressive directions
- Symmetrical high-performance thread matched to drill bit tip pre-drilling performance
- Compact screw connections and small material cross-sections
- Extremely short permitted edge distances (e.g., 3xd)
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility
- Adjusted heat treatment
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct application and structural integrity.
Applications
- Structural woodwork
- Element construction
- Timber panel construction
- Interior fitting
- Lateral compression reinforcement
- Metal wood connections
- On rafter insulation
- Roof
- Tensile shear connection
- Wood-concrete-composite
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
The Wurth ASSYplus VG 4 CS construction screw is available for immediate purchase, ideal for structural wood and metal connection applications.
