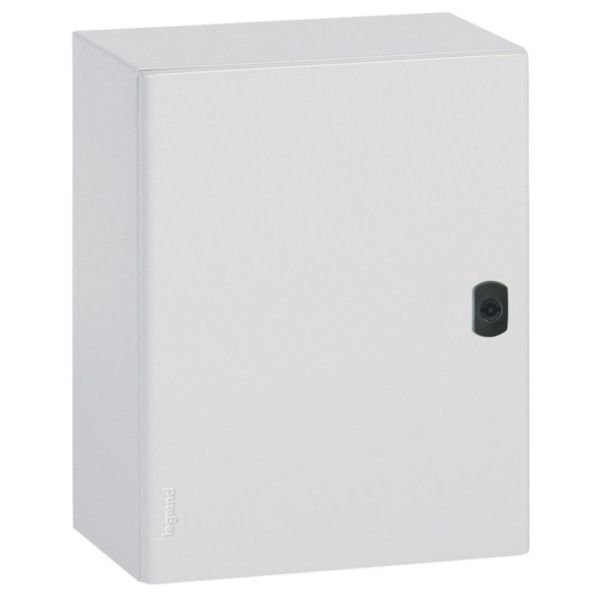

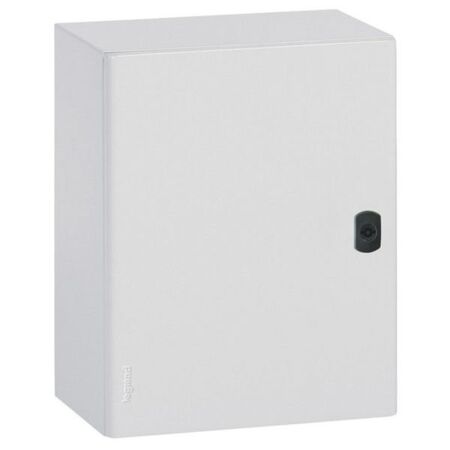

Atlantic Metal Cabinet | IP66 Rated | IK10 Impact Resistance | Grey | @Each of 1 | by Legrand
The Atlantic Metal Cabinet is designed for robust outdoor electrical enclosure applications, featuring IP66 rating for dust and water protection and IK10 impact resistance for high mechanical durability. Constructed from 1 mm thick steel with a reversible single door and double bar lock, this cabinet is perfect for industrial settings, ensuring safety and reliability for your electrical equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Atlantic Metal Cabinet | IP66 Rated | IK10 Impact Resistance | Grey | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036921
Alternatively Known As: Industrial Metal Enclosure, Electrical Cabinet, Outdoor Electrical Enclosure, Surface Mounted Metal Box
Technical Specifications
- Material: Steel with powder coating
- Dimensions: 700 mm (H) x 500 mm (W) x 200 mm (D)
- Door: Single, reversible with lever and double bar lock
- Protection: IP66 (IEC EN 60529), IK10 (IEC EN 62262)
- Surface protection: 80 µm thick textured polyester coating
- Mounting: Surface mounted
- Colour: Grey (RAL 7035)
- Built-in depth: 205 mm
- Inner depth: 180 mm
- Protection class: Class I (IEC 61140)
- EMC attenuation: 20 dB
- Dimensions (H x L x W): 700mm x 200mm x 500mm
- Weight: 20.3 kg
Key Features
- IP66 rated for dust and water ingress protection
- IK10 impact resistance for high mechanical protection
- Constructed from 1 mm thick steel with 1.5 mm door thickness
- Powder coated with 80 µm thick textured polyester for corrosion resistance
- Reversible single door with lever and double bar lock
- Self-centering positioning system for equipment
- Compatible with Atlantic accessories and low cable entries
- Suitable for outdoor use
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial: Electrical and electronic equipment housing
- Outdoor installations requiring high protection
- Surface mounting for industrial control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable powder coating reduces need for frequent replacements
- High protection rating minimizes environmental damage to housed equipment
- Steel construction is recyclable
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Atlantic Metal Cabinet vertical version 700 x 500 x 200 mm with 1 door is available for immediate purchase, ideal for industrial and outdoor electrical enclosure applications.
