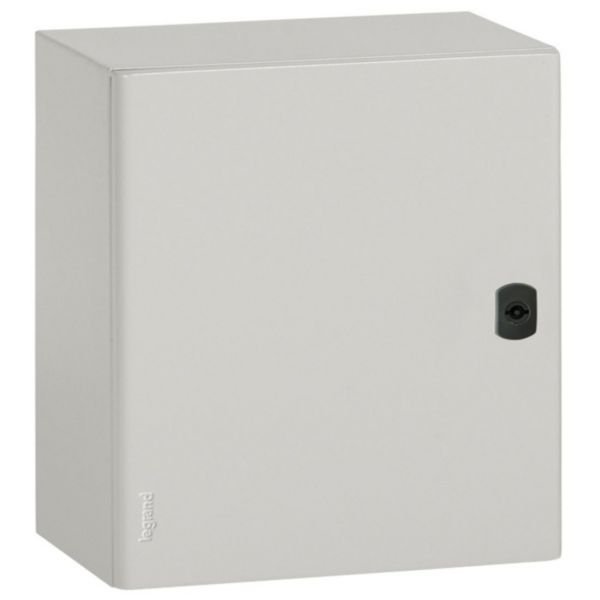

Atlantic Metal Cabinet | IP66 Rated | IK10 Impact Resistance | Steel Construction | @EA of 1 | by Legrand
The Atlantic Metal Cabinet is designed for robust outdoor electrical applications, featuring IP66 rating for dust and water protection and IK10 impact resistance for high mechanical durability. Constructed from steel with a reversible single door and double bar lock, this cabinet is perfect for industrial control panels and outdoor installations, ensuring safety and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Atlantic Metal Cabinet | IP66 Rated | IK10 Impact Resistance | Steel Construction | @EA of 1 | by Legrand
Brand: Legrand
SKU: 036976
Alternatively Known As: Industrial Metal Enclosure, Electrical Cabinet, Outdoor Electrical Box, Steel Enclosure, IP66 Metal Cabinet
Technical Specifications
- Mounting method: Surface mounted
- Cover model: Closed door
- Type of door: Single reversible door
- Lock: Yes, double bar lock
- Material: Steel
- Plate thickness: Cabinet 1 mm, Door 1.25 mm
- Colour: Grey (RAL 7035)
- Degree of protection: IP66
- Impact strength: IK10
- Protection class: IEC 61140 Class I
- EMC attenuation: 20 dB
- Suitable for outdoor use: Yes
- Weight: 13 kg
- Dimensions (H x L x W): 400mm x 200mm x 600mm
- Weight: 13 kg
Key Features
- IP66 rated for dust and water ingress protection
- IK10 impact resistance for high mechanical protection
- Constructed from steel with 1 mm cabinet and 1.25 mm door thickness
- Powder coated with 80 µm thick textured polyester for corrosion resistance
- Reversible single door with lever and double bar lock
- Self-centering positioning system for equipment
- Compatible with Atlantic accessories and low cable entries
- Suitable for outdoor use
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial: Electrical and electronic equipment housing
- Outdoor installations requiring high protection
- Surface mounting for industrial control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable powder coating reduces need for frequent replacements
- High protection rating minimizes environmental damage to housed equipment
- Corrosion resistance extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Atlantic Metal Cabinet horizontal version 400 x 600 x 200 mm with 1 door is available for immediate purchase, ideal for industrial and outdoor electrical enclosure applications.
