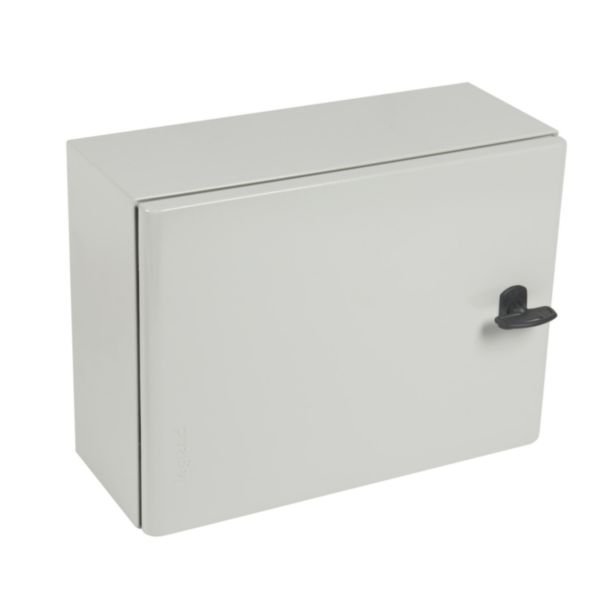

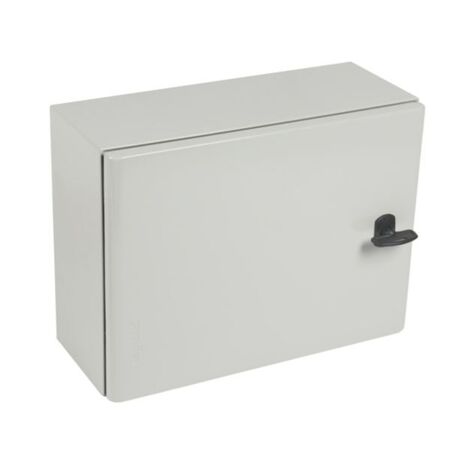

Atlantic Metal Cabinet | IP66 Rated | IK10 Impact Resistance | Surface Mounted | @Each of 1 | by Legrand
The Atlantic Metal Cabinet is designed for industrial and outdoor electrical applications, featuring an IP66 rating for dust and water protection and IK10 impact resistance for high mechanical durability. Constructed from steel with a powder-coated finish, this cabinet is perfect for housing electrical equipment securely, ensuring compliance with safety standards and providing long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Atlantic Metal Cabinet | IP66 Rated | IK10 Impact Resistance | Surface Mounted | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036911
Alternatively Known As: Industrial Metal Enclosure, Electrical Equipment Cabinet, Surface Mounted Steel Enclosure
Technical Specifications
- Material: Steel with powder coating
- Cabinet plate thickness: 1 mm
- Door plate thickness: 1.25 mm
- Protection rating: IP66 (IEC EN 60529)
- Impact resistance: IK10 (IEC EN 62262)
- EMC attenuation: 20 dB
- Colour: Grey RAL 7035
- Mounting method: Surface mounted
- Number of doors: 1
- Lock type: Double bar lock
- Built-in depth: 165 mm
- Inner depth: 140 mm
- Protection class: Class I (IEC 61140)
- Dimensions (H x L x W): 300mm x 160mm x 400mm
- Weight: 6.2 kg
Key Features
- IP66 rated for dust and water ingress protection
- IK10 impact resistance for high mechanical protection
- Constructed from steel with 1 mm cabinet plate thickness and 1.25 mm door thickness
- Powder coated with 80 µm thick textured polyester for corrosion resistance
- Reversible single door with lever and double bar lock
- Self-centering positioning system for equipment
- Compatible with Atlantic accessories and low cable entries
- Surface mounted with built-in mounting plate
Professional Installation Requirements
- Installation by a qualified electrician or professional installer is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial: Electrical and electronic equipment housing
- Outdoor installations requiring high protection
- Surface mounting for industrial control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable powder coating reduces need for frequent replacements
- High protection rating minimizes environmental contamination risks
- Steel construction is recyclable
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Atlantic Metal Cabinet horizontal version 300 x 400 x 160 mm with 1 door is available for immediate purchase, ideal for industrial and outdoor electrical enclosure applications.
