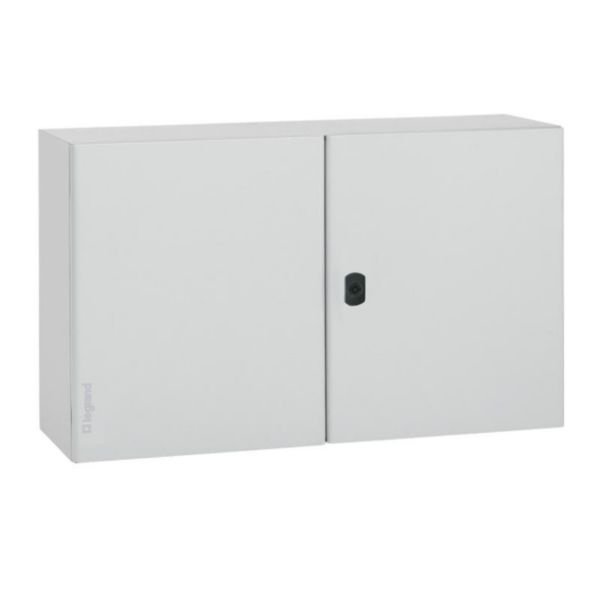

Atlantic Steel Cabinet | IP55 Rated | IK10 Impact Resistance | RAL 7035 Grey | @Each of 1 | by Legrand
The Atlantic Steel Cabinet is designed for industrial environments, featuring IP55 protection against dust and water jets, and IK10 impact resistance for high mechanical protection. With a durable one-piece welded steel body and double doors with a reversible opening, this cabinet is perfect for outdoor installations, ensuring secure housing for electrical and electronic equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Atlantic Steel Cabinet | IP55 Rated | IK10 Impact Resistance | RAL 7035 Grey | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036980
Alternatively Known As: Industrial Steel Enclosure, Electrical Steel Cabinet, IP55 Steel Box, IK10 Impact Resistant Cabinet
Technical Specifications
- Material: Steel with 1.25 mm cabinet plate thickness and 1.8 mm door plate thickness
- Protection rating: IP55 (dust protected and water jets resistant)
- Impact resistance: IK10
- Colour: RAL 7035 Grey
- Mounting: Surface mounted with built-in mounting plate
- Doors: Double door, reversible with double-bar lock
- Dimensions: 800 mm height x 1000 mm width x 300 mm depth
- Suitable for outdoor use
- Protection class: Class I according to IEC 61140
- Corrosion resistance: 1000 hours salt spray resistance
- Dimensions (H x L x W): 800mm x 300mm x 1000mm
- Weight: 35 kg
Key Features
- IP55 rated for protection against dust and water jets from all directions
- IK10 impact resistance for high mechanical protection
- One-piece welded steel body with textured polyester powder coating for corrosion resistance
- Double door with reversible opening and double-bar lock
- Equipped with cable-entry plate and universal lugs for accessory installation
- RAL 7035 grey color suitable for industrial environments
- Surface mounted with built-in mounting plate
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure compliance with electrical and safety standards.
Applications
- Industrial environments requiring robust and secure electrical enclosures
- Outdoor installations needing protection against dust and water jets
- Surface-mounted electrical and electronic equipment housing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable powder coating extends product lifespan reducing waste
- Protects electrical components from environmental damage, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Atlantic Steel Cabinet 800x1000x300mm IP55 IK10 is available for immediate purchase, ideal for industrial and outdoor electrical enclosure applications.
