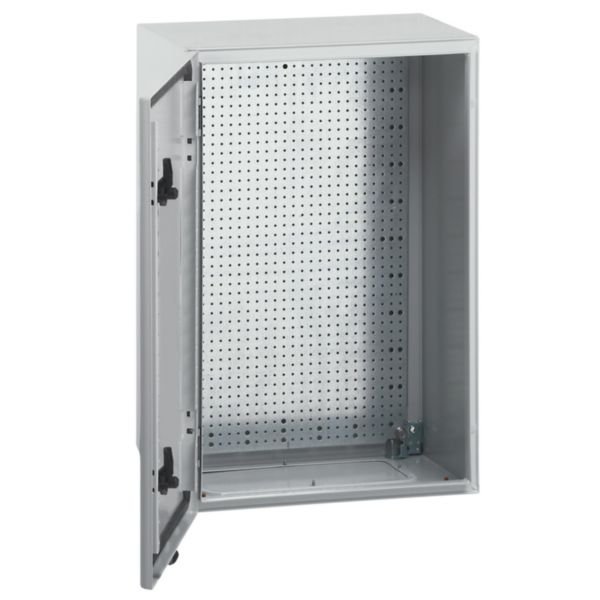

Atlantic Steel Cabinet | IP66 & IK10 Rated | Glass Door | @Each of 1 | by Legrand
The Atlantic Steel Cabinet is designed for industrial environments, featuring IP66 and IK10 ratings for superior dust and water protection. With a single reversible glass door and a robust steel body, this cabinet is perfect for outdoor installations, ensuring secure housing for electrical equipment in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Atlantic Steel Cabinet | IP66 & IK10 Rated | Glass Door | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036926
Alternatively Known As: Industrial Steel Enclosure, IP66 Steel Cabinet, IK10 Electrical Enclosure, Outdoor Steel Cabinet
Technical Specifications
- Material: Steel with textured polyester powder coating
- Dimensions: 600mm (H) x 400mm (W) x 250mm (D)
- Door: Single reversible door with double-bar lock
- Protection: IP66 (dust tight and water jets), IK10 impact resistance
- Colour: RAL 7035 grey
- Plate thickness: Cabinet 1mm, Door 1.25mm
- Mounting: Surface mounted with included mounting plate
- Built-in depth: 255mm, Inner depth: 230mm
- Protection class: Class I according to IEC 61140
- Number of flange plate openings: 1
- Suitable for outdoor use
- Dimensions (H x L x W): 600mm x 250mm x 400mm
- Weight: 15 kg
Key Features
- IP66 rated for complete protection against dust and powerful water jets
- IK10 impact resistance for high mechanical protection
- One-piece welded steel body with textured polyester coating for corrosion resistance
- Reversible single door with double-bar lock
- Equipped with cable-entry plate and universal lugs for accessory installation
- RAL 7035 grey suitable for industrial environments
- Surface mounted with mounting plate included
- Suitable for outdoor use
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical and safety standards.
Applications
- Industrial environments requiring robust and secure electrical enclosures
- Outdoor installations needing high protection against dust and water
- Enclosures for electrical and electronic equipment in harsh conditions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable powder-coated steel construction extends product life and reduces replacement frequency
- High protection rating minimizes environmental contamination of electrical components
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Atlantic Steel Cabinet 600x400x250mm IP66 IK10 with Glass Door is available for immediate purchase, ideal for industrial and outdoor electrical enclosure applications.
