Atlantic Steel Cabinet | IP66 & IK10 Rated | RAL 7035 Grey | @Each of 1 | by Legrand

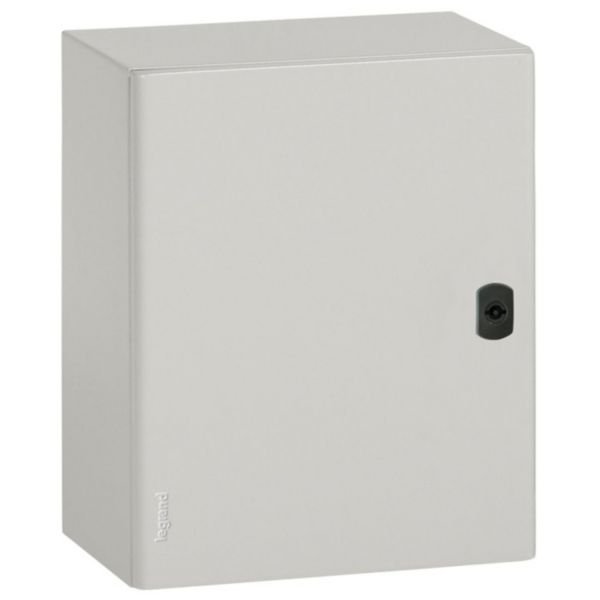

The Atlantic Steel Cabinet is designed for industrial environments, featuring IP66 protection against dust and powerful water jets, along with IK10 impact resistance for high mechanical protection. Ideal for outdoor installations, this robust enclosure ensures the safety of electrical equipment in harsh conditions, with a reversible door and durable textured polyester coating for enhanced longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Atlantic Steel Cabinet | IP66 & IK10 Rated | RAL 7035 Grey | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036972
Alternatively Known As: Industrial Steel Enclosure, IP66 Steel Cabinet, IK10 Electrical Enclosure, Outdoor Steel Enclosure
Technical Specifications
- Material: Steel with 1.25 mm thickness for cabinet and 1.5 mm for door
- Protection rating: IP66 (dust tight and protected against powerful water jets)
- Impact resistance: IK10
- Colour: RAL 7035 Grey
- Mounting: Surface mounted with included mounting plate
- Door: Single reversible door with double-bar lock
- Dimensions: 600 mm height x 600 mm width x 400 mm depth
- Corrosion resistance: Textured polyester coating with 1000h salt spray resistance
- Protection class: Class I according to IEC 61140
- Number of flange plate openings: 1
- Dimensions (H x L x W): 600mm x 400mm x 600mm
- Weight: 25 kg
Key Features
- IP66 rated for protection against dust and powerful water jets
- IK10 impact resistance for high mechanical protection
- One-piece welded steel body with textured polyester powder coating
- Reversible single door with double-bar lock
- Equipped with cable-entry plate and universal lugs for accessory installation
- RAL 7035 grey color suitable for industrial environments
- Surface mounted with mounting plate included
- Corrosion and chemical resistant with 1000h salt spray resistance
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical and safety standards.
Applications
- Industrial environments requiring robust and secure electrical enclosures
- Outdoor installations needing protection against dust and water jets
- Enclosures for electrical and electronic equipment in harsh conditions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable powder coating extends product lifespan reducing waste
- High corrosion resistance minimizes need for replacement
- Protects sensitive electrical equipment, reducing risk of environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Atlantic Steel Cabinet 600x600x400mm IP66 IK10 is available for immediate purchase, ideal for industrial and outdoor electrical enclosure applications.
