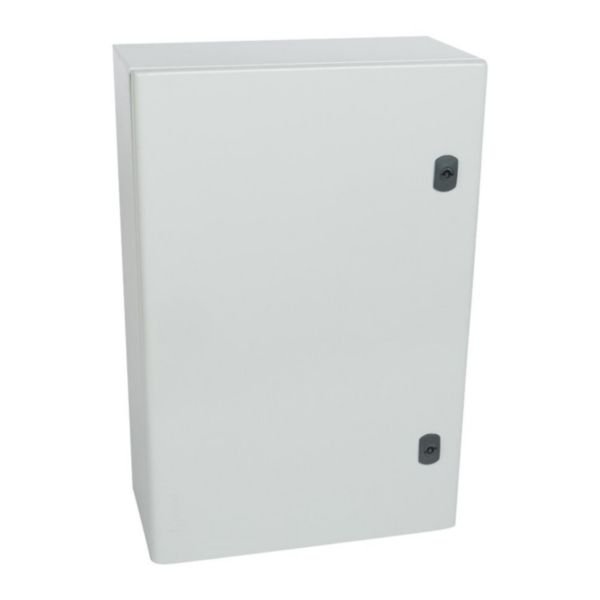

Atlantic Steel Cabinet | IP66 & IK10 Rated | RAL 7035 Grey | @Each of 1 | by Legrand
The Atlantic Steel Cabinet is designed for industrial environments, featuring IP66 and IK10 ratings for superior protection against dust and water. With a robust one-piece welded steel body and a reversible door with a double-bar lock, this enclosure is perfect for securing electrical equipment outdoors. Its textured polyester powder coating ensures corrosion resistance, making it ideal for harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Atlantic Steel Cabinet | IP66 & IK10 Rated | RAL 7035 Grey | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036919
Alternatively Known As: Industrial Steel Enclosure, IP66 Steel Cabinet, IK10 Electrical Enclosure, Outdoor Steel Enclosure
Technical Specifications
- Material: Steel with 1 mm thickness for cabinet and 1.25 mm for door
- Protection rating: IP66 according to EN/IEC 60529
- Impact resistance: IK10
- Colour: RAL 7035 Grey
- Mounting: Surface mounted with built-in mounting plate
- Door: Single reversible door with double-bar lock
- Dimensions: 600 mm height x 400 mm width x 200 mm depth
- Corrosion resistance: Textured polyester powder coating with 1000h salt spray resistance
- Protection class: Class I according to IEC 61140
- Number of flange plate openings: 1
- Dimensions (H x L x W): 600mm x 200mm x 400mm
- Weight: 15 kg
Key Features
- IP66 rated for complete protection against dust and powerful water jets
- IK10 impact resistance for high mechanical protection
- One-piece welded steel body with textured polyester powder coating for corrosion resistance
- Reversible single door with double-bar lock
- Equipped with cable-entry plate and universal lugs for accessory installation
- RAL 7035 grey color suitable for industrial environments
- Surface mounted with built-in mounting plate
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper mounting, sealing, and compliance with electrical safety standards.
Applications
- Industrial environments requiring robust and secure electrical enclosures
- Outdoor installations needing high protection against dust and water jets
- Enclosure for electrical and electronic equipment in harsh conditions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
- Complies with AS/NZS 2208 – Safety Glass in Buildings (if glass doors/accessories used)
Environmental Benefits
- Durable powder coating extends product life reducing waste
- Protects sensitive electrical equipment from environmental damage, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Atlantic Steel Cabinet 600x400x200mm IP66 IK10 is available for immediate purchase, ideal for industrial and outdoor electrical enclosure applications.
