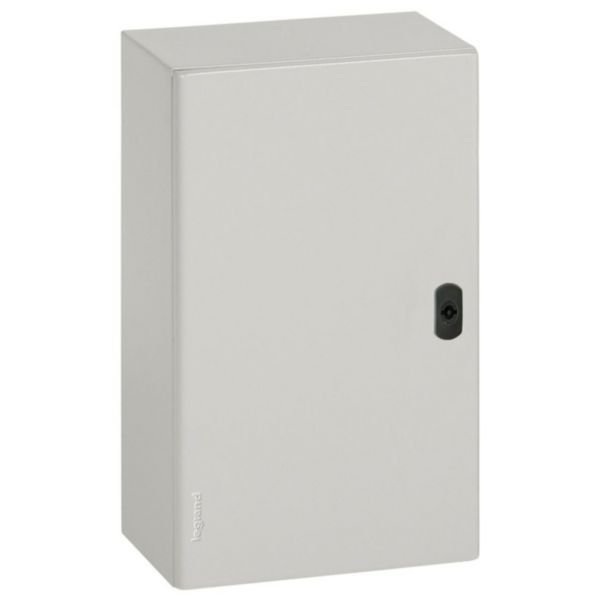

Atlantic Steel Cabinet | IP66 & IK10 Rated | Textured Polyester Coating | RAL 7035 Grey | @Each of 1 | by Legrand
The Atlantic Steel Cabinet is designed for robust outdoor electrical enclosure applications, featuring an IP66 rating for dust and water protection and IK10 impact resistance for high mechanical durability. Built with a textured polyester powder coating, this cabinet is perfect for industrial environments, ensuring secure access with its reversible door and double-bar lock. Ideal for housing electrical and electronic equipment in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Atlantic Steel Cabinet | IP66 & IK10 Rated | Textured Polyester Coating | RAL 7035 Grey | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036946
Alternatively Known As: Industrial Steel Enclosure, IP66 Steel Cabinet, IK10 Impact Resistant Enclosure, Outdoor Electrical Cabinet
Technical Specifications
- Material: Steel with textured polyester powder coating
- Protection rating: IP66 (dust tight and protected against powerful water jets)
- Impact resistance: IK10
- Dimensions: 1200mm height x 800mm width x 400mm depth
- Door: Single, reversible with double-bar lock
- Plate thickness: Cabinet 1.25mm, Door 1.8mm
- Colour: RAL 7035 grey
- Mounting: Surface mounted
- Includes mounting plate
- Suitable for outdoor use
- Protection class: Class I according to IEC 61140
- Dimensions (H x L x W): 1200mm x 400mm x 800mm
- Weight: 35 kg
Key Features
- IP66 rated for protection against dust and powerful water jets
- IK10 impact resistance for high mechanical protection
- One-piece welded steel body with textured polyester coating for corrosion resistance
- Reversible door with double-bar lock for secure access
- Equipped with universal lugs for easy accessory installation
- RAL 7035 grey color suitable for industrial environments
- Surface mounted with a single door design
- Includes mounting plate
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper mounting, sealing, and compliance with electrical safety standards.
Applications
- Industrial environments requiring robust and secure electrical enclosures
- Outdoor installations needing high protection against dust and water jets
- Enclosures for electrical and electronic equipment in harsh conditions
Standards & Compliance
- Complies with AS/NZS 60529 for IP66 protection rating
- Complies with AS/NZS 61373 for impact resistance (IK10 equivalent)
Environmental Benefits
- Durable powder-coated steel reduces need for frequent replacements
- High protection rating minimizes environmental contamination risks
- Corrosion resistance extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Atlantic Steel Cabinet 1200x800x400mm IP66 IK10 is available for immediate purchase, ideal for industrial and outdoor electrical enclosure applications.
