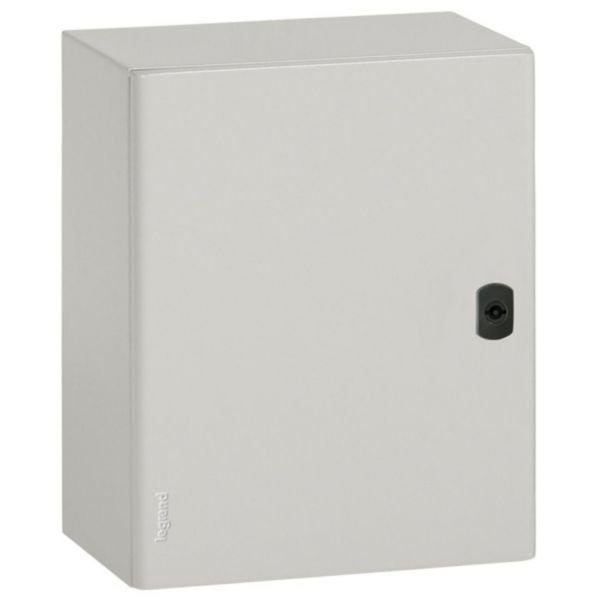

Atlantic Steel Cabinet | IP66 & IK10 Rated | Textured Polyester Coating | RAL 7035 Grey | @Each of 1 | by Legrand
The Atlantic Steel Cabinet is designed for industrial environments, featuring IP66 and IK10 ratings for superior protection against dust and water jets. With a durable textured polyester powder coating and a reversible door with a double-bar lock, this cabinet is perfect for outdoor installations, ensuring your electrical equipment remains secure and protected in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Atlantic Steel Cabinet | IP66 & IK10 Rated | Textured Polyester Coating | RAL 7035 Grey | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036968
Alternatively Known As: Industrial Steel Enclosure, IP66 Steel Cabinet, IK10 Electrical Enclosure, Outdoor Steel Enclosure
Technical Specifications
- Material: Steel with textured polyester powder coating
- Dimensions: 800mm (H) x 800mm (W) x 300mm (D)
- Door: Single reversible door with double-bar lock
- Protection: IP66 (dust tight and water jets), IK10 impact resistance
- Plate thickness: Cabinet 1.25mm, Door 1.8mm
- Colour: RAL 7035 Grey
- Mounting: Surface mounted with mounting plate
- Built-in depth: 305mm, Inner depth: 280mm
- Number of flange plate openings: 1
- Protection class: IEC 61140 Class I
- Dimensions (H x L x W): 800mm x 300mm x 800mm
- Weight: 25 kg
Key Features
- IP66 rated for protection against dust and powerful water jets
- IK10 impact resistance for high mechanical protection
- One-piece welded steel body with textured polyester powder coating
- Reversible single door with double-bar lock
- Equipped with cable-entry plate and universal lugs for accessory installation
- RAL 7035 grey color suitable for industrial environments
- Surface mounted with mounting plate included
- Suitable for outdoor use with excellent corrosion and chemical resistance
Professional Installation Requirements
- Installation by a qualified electrician or professional installer is recommended to ensure compliance with electrical standards and proper sealing for IP66 protection.
Applications
- Industrial environments requiring robust and secure electrical enclosures
- Outdoor installations needing protection against dust and water jets
- Enclosures for electrical and electronic equipment in harsh conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable powder coating extends product lifespan reducing waste
- High protection rating minimizes need for frequent replacements
- Steel construction is recyclable at end of life
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Atlantic Steel Cabinet 800x800x300mm IP66 IK10 is available for immediate purchase, ideal for industrial and outdoor electrical enclosure applications.
