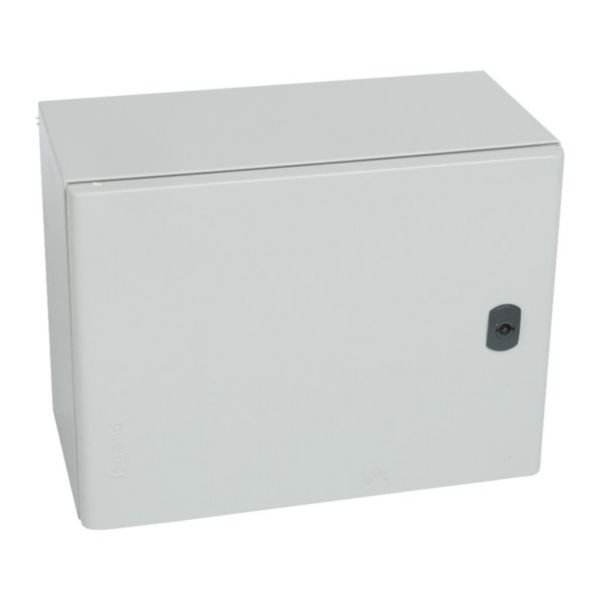

Atlantic Steel Cabinet | IP66 & IK10 Rated | Textured Polyester Coating | RAL 7035 Grey | @Each of 1 | by Legrand
The Atlantic Steel Cabinet is designed for industrial environments, featuring IP66 and IK10 ratings for superior protection against dust and water jets. Constructed from durable steel with a textured polyester powder coating, this cabinet is perfect for outdoor installations, ensuring secure housing for electrical and electronic equipment. Its reversible door and double-bar lock provide added security, making it an ideal choice for robust applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Atlantic Steel Cabinet | IP66 & IK10 Rated | Textured Polyester Coating | RAL 7035 Grey | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036975
Alternatively Known As: Industrial Steel Enclosure, IP66 Steel Cabinet, IK10 Electrical Enclosure, Outdoor Steel Enclosure Box
Technical Specifications
- Material: Steel with textured polyester powder coating
- Dimensions: 300mm (H) x 400mm (W) x 200mm (D)
- Door: Single reversible door with double-bar lock
- Protection Rating: IP66 (dust tight and protected against powerful water jets)
- Impact Resistance: IK10
- Colour: RAL 7035 Grey
- Mounting: Surface mounted with universal lugs and mounting plate
- Plate Thickness: Cabinet 1mm, Door 1.25mm
- Built-in Depth: 205mm
- Inner Depth: 180mm
- Number of openings for flange plates: 1
- Protection Class: Class I according to IEC 61140
- Dimensions (H x L x W): 300mm x 200mm x 400mm
- Weight: 8 kg
Key Features
- IP66 rated for complete protection against dust and powerful water jets
- IK10 impact resistance for high mechanical protection
- Constructed from steel with textured polyester powder coating for corrosion and chemical resistance
- One-piece welded body with reversible single door and double-bar lock
- Equipped with cable-entry plate and universal lugs for accessory installation
- RAL 7035 grey color suitable for industrial environments
- Includes mounting plate for easy equipment installation
- Suitable for outdoor use
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with IP66 sealing and electrical safety standards.
Applications
- Industrial environments requiring robust and secure electrical enclosures
- Outdoor installations needing high protection against dust and water jets
- Surface-mounted electrical and electronic equipment housing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable powder-coated steel construction extends product lifespan reducing waste
- High protection rating minimizes risk of equipment damage and environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Atlantic Steel Cabinet 300x400x200mm IP66 IK10 is available for immediate purchase, ideal for industrial and outdoor electrical enclosure applications.
