Atlantic Steel Cabinet | IP66 & IK10 Rated | Textured Polyester Coating | RAL 7035 Grey | @Each of 1 | by Legrand

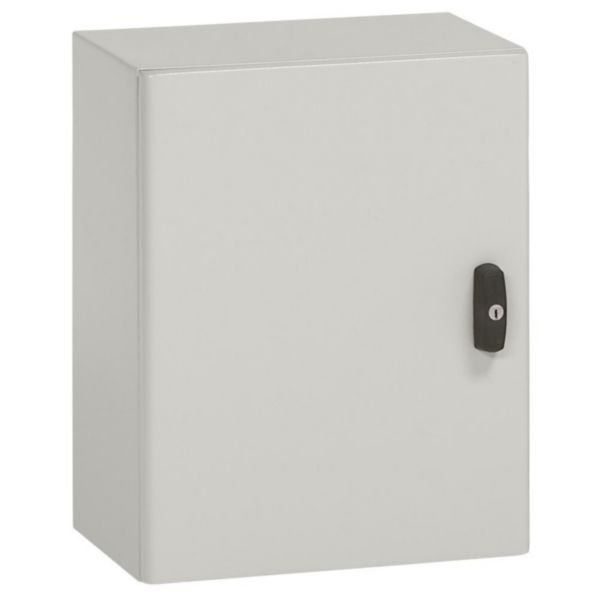

The Atlantic Steel Cabinet is designed for robust outdoor electrical enclosure applications, featuring IP66 and IK10 ratings for superior dust and water protection. Constructed from durable steel with a textured polyester coating, it ensures long-lasting performance in industrial environments. Ideal for housing electrical and electronic equipment, this cabinet is equipped with a double-bar lock and built-in mounting plate for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Atlantic Steel Cabinet | IP66 & IK10 Rated | Textured Polyester Coating | RAL 7035 Grey | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036933
Alternatively Known As: Industrial Steel Enclosure, IP66 Steel Cabinet, IK10 Electrical Enclosure, Outdoor Steel Cabinet
Technical Specifications
- Material: Steel with textured polyester powder coating
- Dimensions: 1000mm (H) x 800mm (W) x 250mm (D)
- Door thickness: 1.8 mm, Cabinet thickness: 1 mm
- Protection rating: IP66 (dust tight and water jets protection)
- Impact resistance: IK10
- Colour: RAL 7035 Grey
- Mounting: Surface mounted with built-in mounting plate
- Lock: Double-bar lock included
- Suitable for outdoor use
- Protection class: IEC 61140 Class I
- Dimensions (H x L x W): 1000mm x 250mm x 800mm
- Weight: 35 kg
Key Features
- IP66 rated for complete protection against dust and powerful water jets
- IK10 impact resistance for high mechanical protection
- One-piece welded steel body with textured polyester coating for corrosion resistance
- Reversible single door with double-bar lock
- Equipped with cable-entry plate and universal lugs for accessory installation
- RAL 7035 grey suitable for industrial environments
- Surface mounted with built-in mounting plate
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial environments requiring robust and secure electrical enclosures
- Outdoor installations needing high protection against dust and water jets
- Enclosures for electrical and electronic equipment in harsh conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable powder-coated steel reduces need for frequent replacements
- Corrosion resistance extends product lifespan, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Atlantic Steel Cabinet 1000x800x250mm IP66 IK10 is available for immediate purchase, ideal for industrial and outdoor electrical enclosure applications.
