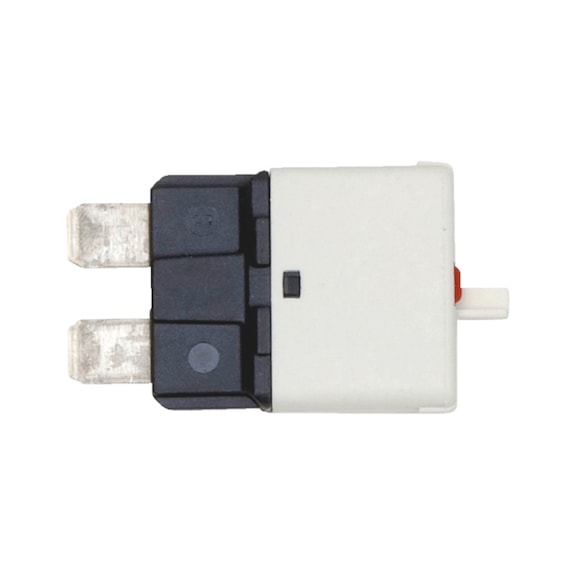

ATO Resettable Fuse 25A | Colour-Coded Thermal Trip | Easy Manual Reset | by Wurth
The ATO resettable fuse 25A is designed for continuous operation in automotive and industrial applications. With a colour-coded thermal trip switch for easy identification and a manual reset feature, it eliminates the need for frequent fuse replacements, ensuring minimal downtime. Ideal for permanent installations, this fuse operates within a temperature range of -40 to 85 °C, making it a reliable choice for various electrical circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ATO Resettable Fuse 25A | Colour-Coded Thermal Trip | Easy Manual Reset | by Wurth
Brand: Wurth
SKU: 731100125
Alternatively Known As: Resettable automotive fuse, manual reset fuse, thermal reset fuse, ATO fuse 25A
Technical Specifications
- Max. current: 25 A
- Max. nominal voltage: 32 V/DC
- Operating temperature range: -40 to 85 °C
- Contact surface: Tin plated
- Colour: White
- Dimensions (H x L x W): 20mm x 20mm x 50mm
- Weight: 0.1 kg
Key Features
- Colour-coded thermal trip switch for easy identification
- Easy to reset by hand using red reset switch
- Eliminates need to change fuses in defective circuits
- No costly downtime
- Reset button must not be blocked
- Reset button and hand trigger may only be actuated in the de-energised state
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Automotive electrical circuits
- Industrial machinery protection
- Permanent electrical installations requiring resettable fuse protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces waste by eliminating the need to replace fuses
- Supports sustainable maintenance practices
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth ATO Resettable Fuse 25A is available for immediate purchase, ideal for automotive and industrial electrical circuit protection.
