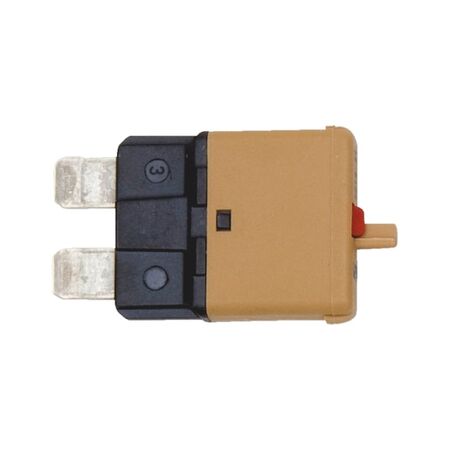

ATO Resettable Fuse 5A | Colour-Coded Thermal Trip Switch | Easy Manual Reset | Tin Plated Contacts | by Wurth
The ATO resettable fuse 5A is designed for continuous operation in automotive and industrial electrical systems, providing reliable overcurrent protection. With a colour-coded thermal trip switch for easy identification and a manual reset feature, it eliminates the need for frequent fuse replacements, reducing downtime and costs. Ideal for protecting sensitive electronic devices, this fuse operates within a temperature range of -40 to 85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ATO Resettable Fuse 5A | Colour-Coded Thermal Trip Switch | Easy Manual Reset | Tin Plated Contacts | by Wurth
Brand: Wurth
SKU: 731100105
Alternatively Known As: Resettable automotive fuse, manual reset fuse, thermal reset fuse, ATO fuse 5A
Technical Specifications
- Max. current: 5 A
- Max. nominal voltage: 32 V/DC
- Operating temperature range: -40 to 85 °C
- Contact surface: Tin plated
- Colour: Light brown
- Dimensions (H x L x W): 15mm x 50mm x 30mm
- Weight: 0.05 kg
Key Features
- Colour-coded thermal trip switch for easy identification
- Easy to reset by hand using red reset switch
- Eliminates need to change fuses in defective circuits, reducing costly downtime
- Reset button must not be blocked and can only be actuated in de-energised state
- Tin plated contact surfaces for reliable conductivity
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Permanent installation in electrical circuits requiring resettable overcurrent protection
- Automotive and industrial electrical systems
- Protection of sensitive electronic devices and circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces electronic waste by allowing fuse reset instead of replacement
- Minimizes downtime and resource use associated with fuse replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth ATO Resettable Fuse 5A is available for immediate purchase, ideal for automotive and industrial electrical circuit protection.
