ATS 3P 100A Type B 125A Frame NXZM Chint

BRAND: CABAC
SKU: 256781
$2,734.50 List price: $3,646.00
+ −
30 Days Return Electricians Unlock Trade Access

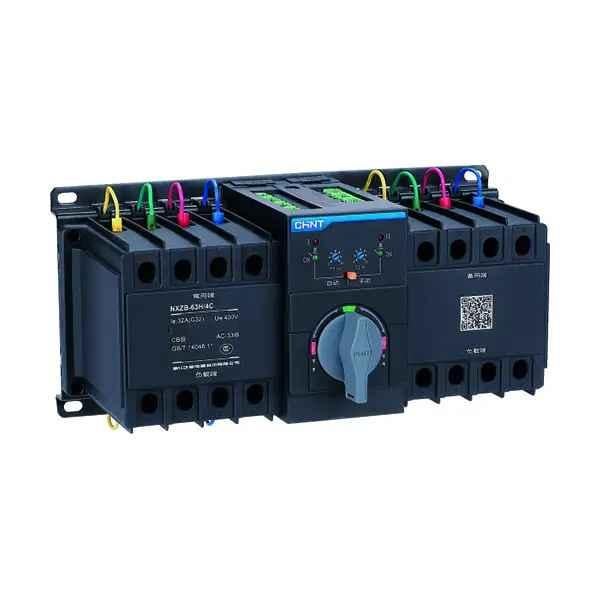

Chint NXZM 100A 3P ATS features CB class changeover, Type B intelligent controller and 125A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM ATS, automatic transfer switch, automatic mains-generator changeover switch, 3-phase changeover switch

Technical Specifications
  • Rated Current: 100 A
  • Frame Current: 125 A
  • Number of Poles: 3P
  • Equipment Class: CB automatic transfer switching equipment
  • Controller: Type B intelligent controller
  • Rated Operational Voltage: 400/415 V AC
  • Rated Frequency: 50 Hz
  • Rated Control Supply: 230/240 V AC, 50 Hz
  • Utilisation Category: AC-33B
  • Operating Transfer Time: 2.8 seconds ±10%
  • Mechanical Endurance: 10,000 operations
  • Electrical Endurance: 2,000 operations
  • Installation: Integrated or split type
  • Mounting Orientation: Vertical or horizontal
  • Dimensions (H x L x W): 223mm x 312mm x 178mm
  • Weight: 5.5 kg
Key Features
  • Automatic transfer between normal mains and generator supplies
  • Circuit-breaker-based Class CB changeover arrangement
  • Type B intelligent controller for automatic monitoring and transfer control
  • Manual, automatic and reset operating modes
  • Mechanical interlocking helps prevent simultaneous connection of both supplies
  • Padlockable off position for maintenance isolation
  • Suitable for three-phase power distribution systems
  • Generator start and status feedback functions available through control terminals
Professional Installation Requirements
  • Installation, commissioning and connection to mains or generator supplies must be performed by a licensed electrician in accordance with applicable electrical regulations, AS/NZS 3000 and AS/NZS 3010. The installation must prevent generator backfeed and correctly address neutral switching and earthing arrangements.
Applications
  • Mains-generator automatic changeover
  • Standby power systems
  • Commercial and industrial switchboards
  • Residential backup generator systems
  • Critical-load power distribution
  • Automatic transfer between two three-phase AC supplies
Standards & Compliance
  • Applicable product standard: AS/NZS IEC 60947.6.1:2015 for low-voltage transfer switching equipment
  • Generator standby installations should be designed and installed in accordance with AS/NZS 3010:2017
  • Electrical installation requirements should be assessed against AS/NZS 3000
Environmental Benefits
  • Long mechanical service life can reduce replacement frequency and associated material waste
  • Automatic transfer supports continued operation of essential loads during supply interruptions
  • Durable low-voltage switchgear construction can support extended system service life
Warranty Information

CHINT warranty policy generally provides 27 months from the date of manufacture for other low-voltage apparatus purchased through authorised sales channels. Contractual terms and Australian consumer guarantees may apply.

Available Now

Available through authorised CHINT distributors in Australia.
