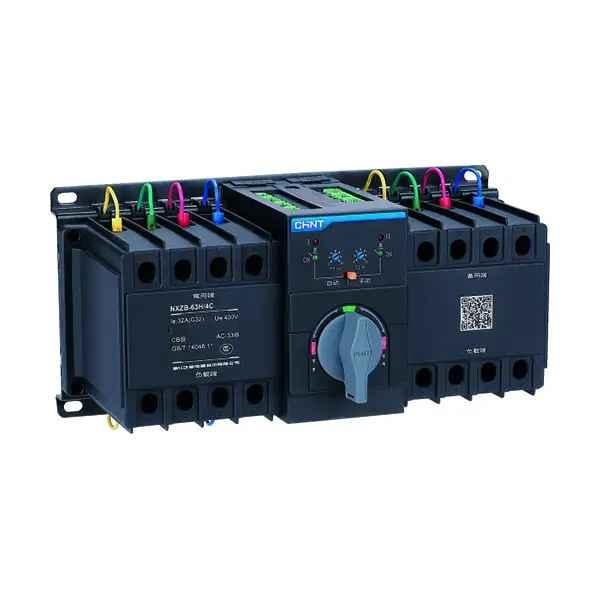

ATS 3P 160A High Breaking Type B 160A Frame NXZM Chint

BRAND: CABAC
SKU: 256792
$3,116.10 List price: $4,154.80
+ −
30 Days Return Electricians Unlock Trade Access
Chint NXZM 160A 3P ATS features CB class changeover, Type B intelligent controller, high breaking capacity and 160A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM 160A ATS, 3P automatic changeover switch, mains-generator transfer switch, Class CB ATS

Technical Specifications
  • Product Type: Class CB automatic transfer switching equipment
  • Frame Current: 160A
  • Rated Current: 160A
  • Number of Poles: 3P
  • Rated Operational Voltage: 400/415V AC, 50/60Hz
  • Rated Insulation Voltage: 800V AC
  • Rated Impulse Withstand Voltage: 8kV
  • Utilisation Category: AC-33B
  • High Breaking Capacity: 50kA rated short-circuit breaking capacity at 400V AC
  • Rated Short-Circuit Making Capacity: 105kA
  • Controller: Type B intelligent controller with display and communication function
  • Control Supply Voltage: 230/240V AC
  • Transfer Mode: Automatic or manual; grid-grid or grid-generator
  • Transfer Delay: Adjustable, up to 300 seconds
  • Mechanical Endurance: 8,000 operations
  • Electrical Endurance: 2,000 operations
  • Operating Temperature: -5°C to +40°C
  • Maximum Altitude: 2,000m
  • Pollution Degree: 3
  • Installation: Integrated or split controller configuration
  • Dimensions (H x L x W): 223mm x 178mm x 312mm
  • Weight: 10 kg
Key Features
  • 3-pole automatic changeover for mains-generator or dual-mains applications
  • High breaking capacity for demanding low-voltage distribution systems
  • Type B intelligent controller with voltage monitoring and configurable transfer settings
  • Automatic transfer and restoration functions with adjustable delays
  • Generator start and stop control outputs
  • Manual, automatic and off-position operating modes
  • LCD display for supply voltage, operating status and fault indication
  • RS-485 communication interface with Modbus functionality
  • Mechanical interlocking and padlockable off position
  • Suitable for industrial, commercial and residential backup power systems
Professional Installation Requirements
  • Installation, commissioning and maintenance must be performed by a licensed electrical contractor in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable generator-installation requirements. Verify system fault levels, conductor sizing, neutral arrangement, phase sequence and generator compatibility before energising.
Applications
  • Mains-generator automatic changeover
  • Standby generator installations
  • Commercial and industrial distribution boards
  • Critical power and emergency supply systems
  • High-rise and residential backup power systems
  • Dual-mains automatic transfer systems
Standards & Compliance
  • Applicable product standard: AS/NZS IEC 60947.6.1:2015 for low-voltage transfer switching equipment
  • Manufacturer product standard reference: IEC/EN 60947-6-1
  • Electrical installation requirements: AS/NZS 3000
  • Generator installation requirements may include AS/NZS 3010 where applicable
Environmental Benefits
  • Supports continuity of supply from efficient standby-generation systems, reducing disruption and equipment downtime
  • Durable moulded-case construction and rated operating endurance can reduce replacement frequency and material waste
  • Electrical and metal components may be recoverable through appropriate electrical-equipment recycling at end of service life
Warranty Information

CHINT's general warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture when purchased through authorised sales channels; contractual or regional terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
