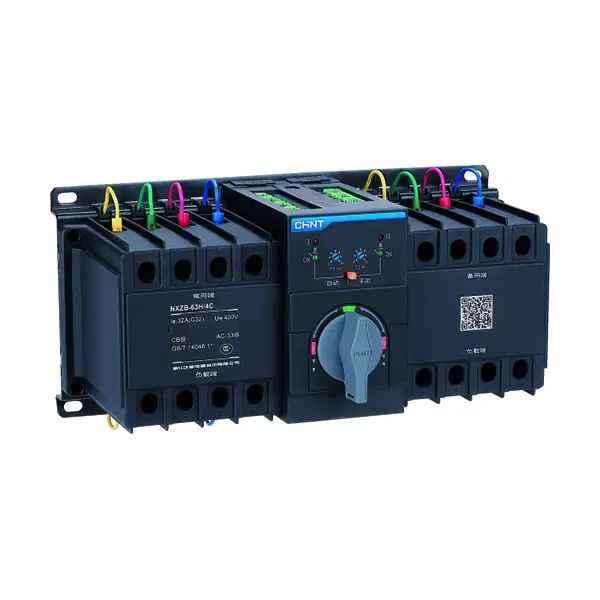

ATS 3P 63A Type B 63A Frame NXZM Chint

BRAND: CABAC
SKU: 256757
$2,320.30 List price: $3,093.80
+ −
30 Days Return Electricians Unlock Trade Access
Chint NXZM 63A 3P ATS features CB class changeover, Type B intelligent controller and 63A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM 63A ATS, Automatic Changeover Switch, Mains-Generator Changeover Switch, CB-Class ATSE

Technical Specifications
  • Product Series: NXZM
  • Switching Class: CB automatic transfer switching equipment
  • Frame Current: 63 A
  • Rated Current: 63 A
  • Number of Poles: 3P
  • Controller: Type B intelligent controller
  • Rated Operational Voltage: 400/415 V AC, 50 Hz
  • Rated Insulation Voltage: 800 V AC
  • Rated Impulse Withstand Voltage: 8 kV
  • Utilisation Category: AC-33B
  • Rated Short-Circuit Breaking Capacity: 6 kA
  • Rated Short-Circuit Making Capacity: 9.18 kA
  • Mechanical Endurance: 10,000 operations
  • Electrical Endurance: 2,000 operations
  • Control Supply: 230/240 V AC, 50 Hz
  • Control Voltage Range: 85% to 110% of Ue
  • Typical Transfer Time: 2.8 seconds ±10%
  • Installation Category: III
  • Pollution Degree: 3
  • Enclosure Protection: IP20
  • Operating Temperature: -5°C to +40°C
  • Mounting: Panel mounting
  • Dimensions (H x L x W): 223mm x 312mm x 178mm
  • Weight: 5.5 kg
Key Features
  • Automatic transfer between normal mains and alternative generator supply
  • Three-pole changeover configuration for three-phase systems
  • Intelligent Type B controller for automatic monitoring and transfer operation
  • CB-class switching equipment with integrated circuit-breaker-based switching
  • 63 A frame and 63 A rated current configuration
  • Manual and automatic operating modes
  • Built-in controller installation
  • Suitable for mains-failure and generator-backup applications
Professional Installation Requirements
  • Installation, commissioning and connection to mains or generator supplies must be performed by a licensed electrician in accordance with AS/NZS 3000, AS/NZS 3010 and applicable local electrical safety requirements.
Applications
  • Mains-generator changeover systems
  • Three-phase standby power installations
  • Commercial and industrial backup power systems
  • Emergency power distribution
  • Automatic transfer of essential services between normal and alternate supplies
Standards & Compliance
  • AS/NZS IEC 60947.6.1:2015 for automatic transfer switching equipment
  • AS/NZS 3000:2018 for electrical installations and wiring rules
  • AS/NZS 3010:2017 for electrical installations incorporating generating sets
  • AS/NZS 3820 for essential safety requirements of electrical equipment where applicable
Environmental Benefits
  • Supports efficient use of standby generation by transferring loads only when the normal supply is unavailable
  • Durable construction and rated operating endurance can reduce replacement frequency and equipment waste
  • Metallic and polymer components may be separated for appropriate recycling at end of service life
  • Automatic transfer operation can help maintain continuity of power to energy-management and control systems
Warranty Information

CHINT warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
