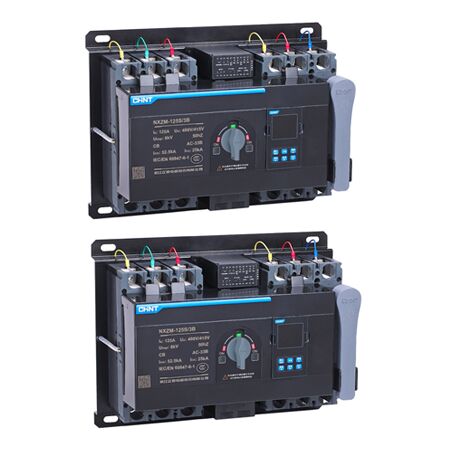

ATS 3P 80A Type B 125A Frame NXZM Chint

BRAND: CABAC
SKU: 256778
$2,670.90 List price: $3,561.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint NXZM 80A 3P ATS features CB class changeover, Type B intelligent controller and 125A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM-125H/3B 80A ATS, Automatic Changeover Switch, Mains-Generator Transfer Switch, Intelligent ATS

Technical Specifications
  • Model: NXZM-125H/3B 80A
  • Product Type: Class CB automatic transfer switching equipment
  • Rated Current: 80 A
  • Frame Current: 125 A
  • Number of Poles: 3P
  • Rated Operational Voltage: 400/415 V AC, 50 Hz
  • Rated Insulation Voltage: 800 V AC
  • Utilisation Category: AC-33B
  • Rated Short-Circuit Making Capacity: 105 kA
  • Rated Short-Circuit Breaking Capacity: 50 kA
  • Controller: Type B intelligent controller
  • Controller Supply: 230/240 V AC, 50 Hz
  • Control Voltage Range: 85% to 110% of rated voltage
  • Operating Transfer Time: Approximately 2.8 seconds
  • Mechanical Endurance: 10,000 operations
  • Electrical Endurance: 2,000 operations
  • Controller Installation: Integrated or split configuration
  • Catalogue Code: 256782
  • Dimensions (H x L x W): 240mm x 312mm x 190mm
  • Weight: 0.9 kg
Key Features
  • Automatic changeover between mains and generator supplies
  • Class CB construction using moulded-case circuit-breaker switching bodies
  • Type B intelligent controller for automatic monitoring and transfer control
  • Three-pole configuration for three-phase applications
  • 125A frame with an 80A rated operating current
  • Manual, automatic and reset operating functions
  • Suitable for power-grid and generator changeover applications
  • High short-circuit making and breaking capacity
  • Optional communication functionality available for compatible configurations
Professional Installation Requirements
  • Installation, commissioning and connection to mains or generator supplies must be performed by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000, AS/NZS 3010 and applicable state or territory electrical safety requirements.
Applications
  • Automatic mains-generator changeover
  • Standby power systems
  • Commercial and industrial electrical distribution
  • Three-phase emergency power installations
  • Generator-backed switchboards and essential services supplies
Standards & Compliance
  • Relevant product standard: AS/NZS 60947.6.1 for automatic transfer switching equipment
  • Installation should comply with AS/NZS 3000 Wiring Rules
  • Generator-associated installations should comply with AS/NZS 3010
Environmental Benefits
  • Supports continuity of power from an efficient standby generator system, reducing disruption and potential equipment losses
  • Long mechanical and electrical endurance can reduce replacement frequency and associated waste
  • Metallic and polymer components may be recoverable through appropriate electrical equipment recycling streams at end of life
Warranty Information

CHINT general warranty policy for other low-voltage apparatus specifies 27 months from the date of manufacture when sold through authorised channels; contract terms and Australian consumer guarantees may also apply.

Available Now

Available through authorised CHINT distributors in Australia.
