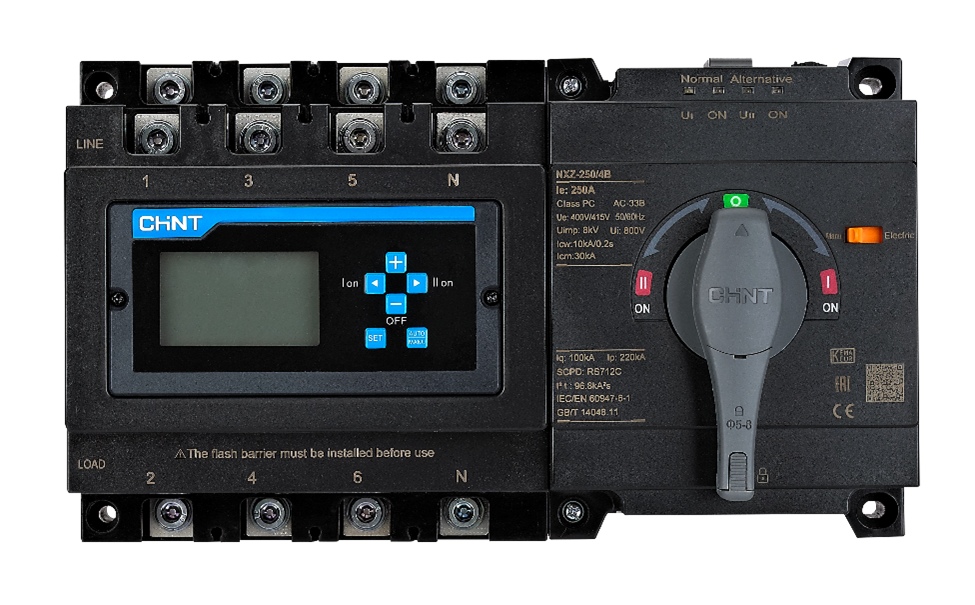

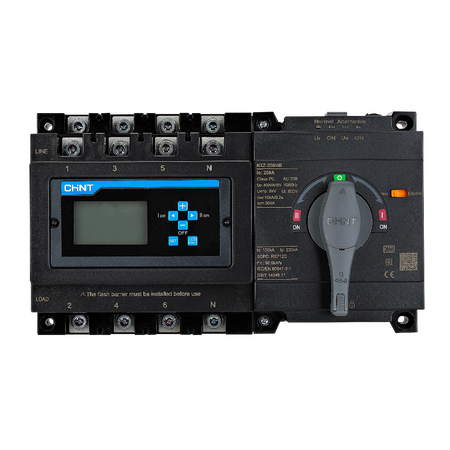

ATS 4P 125A High Breaking Type A 125A Frame NXZM Chint

BRAND: CABAC
SKU: 437580
$2,988.90 List price: $3,985.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NXZM 125A 4P ATS features CB class changeover, Type A standard controller, high breaking capacity and 125A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM 125A ATS, 4P Automatic Changeover Switch, Mains-Generator Transfer Switch, Class CB ATS

Technical Specifications
  • Product Type: Class CB automatic transfer switching equipment
  • Model: NXZM-125H/4A 125A
  • Frame Current: 125A
  • Rated Current: 125A
  • Number of Poles: 4P
  • Controller: Type A standard controller
  • Rated Operational Voltage: 400/415V AC, 50Hz
  • Rated Insulation Voltage: 800V AC
  • Rated Impulse Withstand Voltage: 8kV
  • Utilisation Category: AC-33B
  • Rated Short-Circuit Making Capacity Icm: 105kA
  • Rated Short-Circuit Breaking Capacity Icn: 50kA
  • Mechanical Endurance: 10,000 operations
  • Electrical Endurance: 2,000 operations
  • Control Supply: 230/240V AC, 50Hz
  • Control Voltage Range: 85% to 110% of rated control voltage
  • Operating Transfer Time: 2.8 seconds ±10%
  • Installation Mode: Integrated or split
  • Dimensions (H x L x W): 230mm x 300mm x 190mm
  • Weight: 1.5 kg
Key Features
  • Four-pole automatic transfer switching for mains-generator systems
  • Class CB construction with circuit-breaker-based switching
  • High breaking capacity rated at 50kA
  • Standard Type A controller for automatic source monitoring and transfer
  • Manual operation and reset functionality
  • Suitable for 400/415V AC low-voltage power distribution
  • Designed for automatic transfer between normal and alternative power supplies
Professional Installation Requirements
  • Installation, commissioning and connection to mains or generator supplies must be performed by a licensed electrical contractor in accordance with AS/NZS 3000 and AS/NZS 3010, with system protection and neutral-switching arrangements verified for the installation.
Applications
  • Mains-to-generator changeover systems
  • Standby power installations
  • Commercial and industrial switchboards
  • Emergency power systems
  • Low-voltage power distribution requiring automatic source transfer
Standards & Compliance
  • AS/NZS IEC 60947.6.1:2015: applicable Australian/New Zealand standard for transfer switching equipment
  • AS/NZS 3000:2018: electrical installation requirements applicable to switchboard and changeover installation
  • AS/NZS 3010:2017: electrical installation requirements for generating sets and generator changeover systems
Environmental Benefits
  • Long mechanical endurance of up to 10,000 operations can reduce replacement frequency and equipment waste
  • Automatic transfer supports continued operation of standby power systems and can help maintain efficient load management
  • Durable low-voltage switchgear construction supports extended service life
Warranty Information

CHINT warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable customer contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
