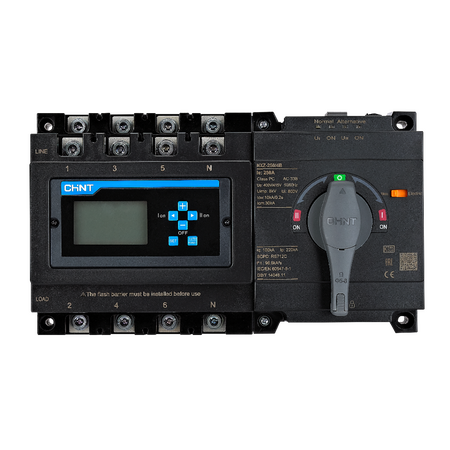

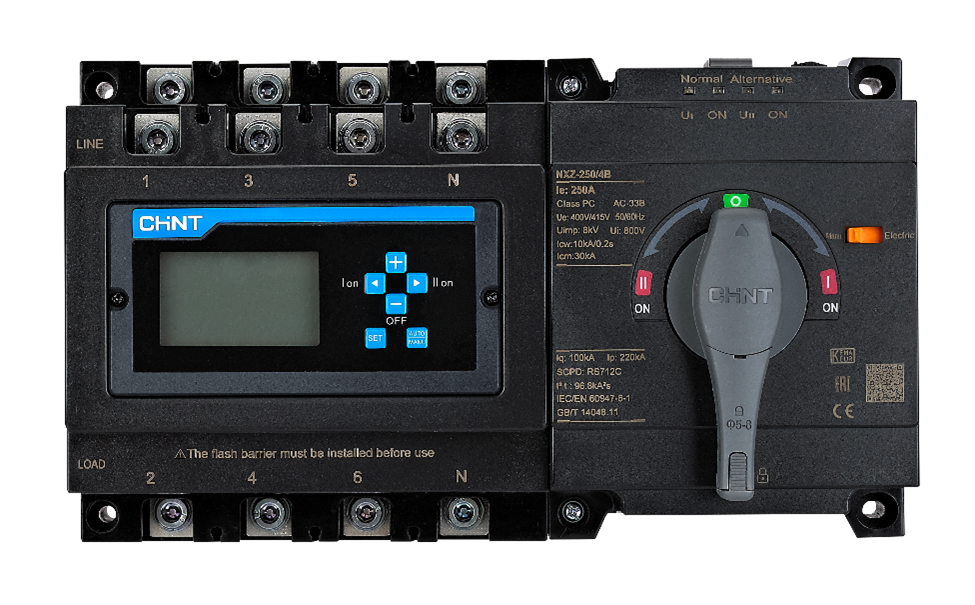

ATS 4P 125A Type A 125A Frame NXZM Chint

BRAND: CABAC
SKU: 297188
$2,861.70 List price: $3,815.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint NXZM 125A 4P ATS features CB class changeover, Type A standard controller and 125A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM 125A ATS, 4P Automatic Changeover Switch, Mains-Generator Changeover Switch, Automatic Transfer Switching Equipment

Technical Specifications
  • Product Type: Class CB automatic transfer switching equipment
  • Frame Current: 125A
  • Rated Current: 125A
  • Number of Poles: 4P
  • Controller: Type A standard controller with LED indication
  • Rated Operational Voltage: 400/415V AC, 50Hz
  • Rated Insulation Voltage: 800V AC
  • Rated Impulse Withstand Voltage: 8kV
  • Utilisation Category: AC-33B
  • Rated Short-Circuit Making Capacity: 52.5kA, standard S type
  • Rated Short-Circuit Breaking Capacity: 25kA, standard S type
  • Mechanical Endurance: 10,000 operations
  • Electrical Endurance: 2,000 operations
  • Operating Transfer Time: 2.8 seconds ±10%
  • Rated Control Supply Voltage: 230/240V AC, 50Hz
  • Control Voltage Range: 85% to 110% of rated voltage
  • Installation Mode: Integrated or split installation
  • Dimensions (H x L x W): 230mm x 300mm x 190mm
  • Weight: 1.5 kg
Key Features
  • Four-pole switching for three-phase installations with neutral switching capability
  • Automatic transfer between normal mains and alternative generator supplies
  • Class CB construction with integrated circuit-breaker protection
  • Standard Type A controller with status indication and automatic/manual operation
  • Suitable for mains-generator and mains-mains changeover arrangements
  • Manual override facility for maintenance and controlled operation
  • Designed for industrial, commercial and residential standby power systems
Professional Installation Requirements
  • Installation, commissioning and connection to mains or generator supplies must be completed by a licensed electrician in accordance with AS/NZS 3000, AS/NZS 3010 and the equipment installation instructions. Correct neutral configuration, phase sequence, fault protection and anti-backfeed arrangements must be verified before energisation.
Applications
  • Mains-generator automatic changeover
  • Standby power systems
  • Commercial and industrial switchboards
  • Residential backup generator installations
  • Three-phase four-wire power distribution systems
  • Emergency and alternative power supply systems
Standards & Compliance
  • AS/NZS 60947-6-1: Applicable Australian/New Zealand product standard for automatic transfer switching equipment; confirm current certification for the supplied variant
  • AS/NZS 3010:2017: Relevant to generator changeover installations and standby generating-set connections
  • AS/NZS 3000:2018: Relevant to electrical installation, wiring, protection and switchboard requirements
Environmental Benefits
  • Supports continued operation of electrical systems during mains outages, reducing disruption and potential product or process losses
  • Durable switching construction and high mechanical endurance can reduce replacement frequency and associated waste
  • Metallic electrical components are suitable for recovery and recycling at end of service life
  • Does not use refrigerants or other direct high-global-warming-potential working fluids
Warranty Information

Warranty terms vary by market, authorised distributor and sales contract. Confirm the applicable CHINT warranty conditions before purchase or installation.

Available Now

Available through authorised CHINT distributors in Australia.
