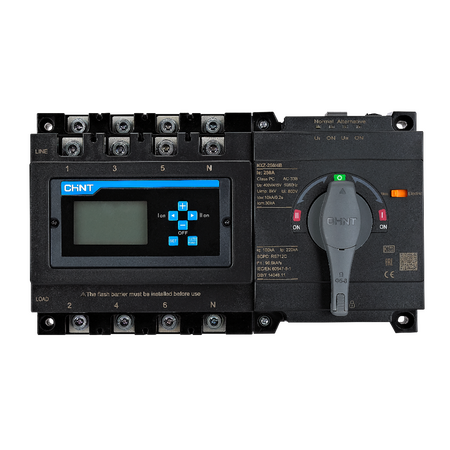

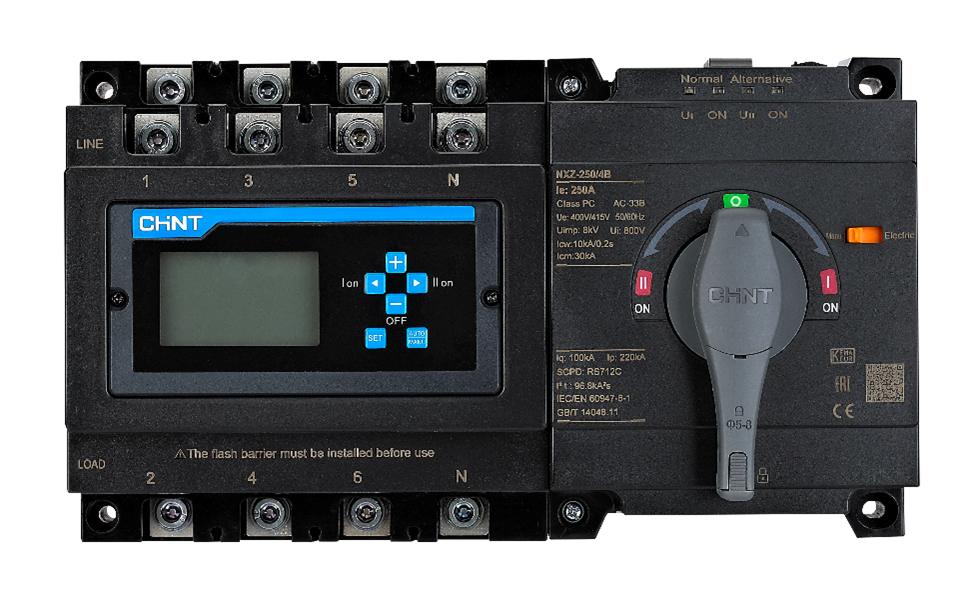

ATS 4P 125A Type A 160A Frame NXZM Chint

BRAND: CABAC
SKU: 297195
$3,179.70 List price: $4,239.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint NXZM 125A 4P ATS features CB class changeover, Type A standard controller and 160A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM-160S/4A 125A ATS, 4P Automatic Changeover Switch, Mains-Generator Transfer Switch

Technical Specifications
  • Rated Current: 125 A
  • Frame Current: 160 A
  • Number of Poles: 4P
  • Switching Class: CB, circuit-breaker type
  • Controller: Type A standard controller with LED indication
  • Rated Operational Voltage: 400/415 V AC
  • Frequency: 50 Hz
  • Utilisation Category: AC-33B
  • Control Supply: 230/240 V AC, 50 Hz
  • Rated Short-Circuit Breaking Capacity: 35 kA, S version
  • Rated Short-Circuit Making Capacity: 73.5 kA, S version
  • Operating Transfer Time: Approximately 3.3 seconds
  • Mechanical Endurance: 8,000 operations
  • Electrical Endurance: 2,000 operations
  • Installation: Mounting plate, cable or copper busbar connection
  • Enclosure Protection: IP20
  • Operating Altitude: Up to 2,000 m
  • Dimensions (H x L x W): 250mm x 340mm x 167mm
  • Weight: 11.5 kg
Key Features
  • Automatic transfer between mains and generator supplies
  • Four-pole switching suitable for three-phase, four-wire systems
  • CB-class construction using integrated moulded-case circuit breakers
  • Standard Type A controller for automatic monitoring and changeover
  • Manual, automatic and off operating modes
  • Mechanical interlock helps prevent simultaneous connection of both sources
  • Padlockable off position for maintenance isolation
  • Suitable for grid-generator and grid-grid transfer arrangements
Professional Installation Requirements
  • Installation, commissioning and connection to mains or generator supplies must be carried out by a licensed electrical contractor in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable generating-set installation requirements under AS/NZS 3010.
Applications
  • Mains-generator automatic changeover
  • Standby power systems
  • Commercial and industrial switchboards
  • Residential backup power systems
  • Critical-load power continuity installations
  • Three-phase, four-wire distribution systems
Standards & Compliance
  • Applicable transfer-switch equipment standard: AS/NZS IEC 60947.6.1:2015
  • Electrical installation requirements: AS/NZS 3000:2018
  • Generating-set installation requirements may include AS/NZS 3010:2017
Environmental Benefits
  • Supports continued operation of energy-efficient electrical systems during mains interruptions
  • Durable switchgear construction can reduce replacement frequency and equipment waste
  • Metallic electrical components are generally recoverable through established electrical equipment recycling streams
Warranty Information

CHINT warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture against defects in materials and workmanship when supplied through authorised sales channels; contract terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
