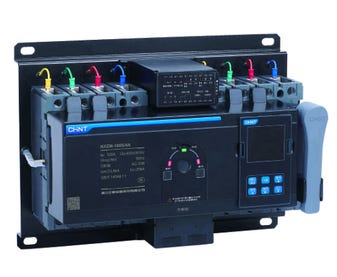

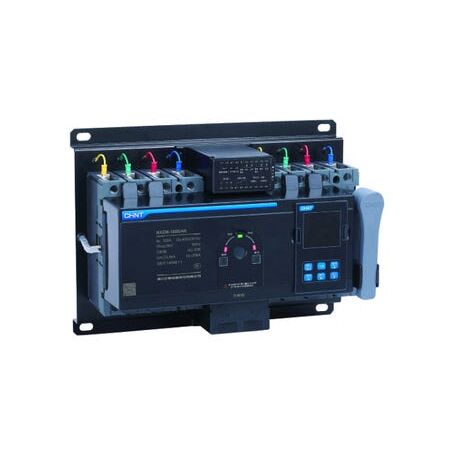

ATS 4P 160A Type B 160A Frame NXZM Chint

BRAND: CABAC
SKU: 256794
$3,179.70 List price: $4,239.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint NXZM 160A 4P ATS features CB class changeover, Type B intelligent controller and 160A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM 160A ATS, 4P Automatic Changeover Switch, Class CB Transfer Switch, Mains-Generator Changeover Switch

Technical Specifications
  • Product Series: NXZM
  • Model: NXZM-160S/4B 160A
  • Switching Class: Class CB automatic transfer switching equipment
  • Number of Poles: 4P
  • Rated Current: 160A
  • Frame Current: 160A
  • Rated Operational Voltage: 400/415V AC, 50Hz
  • Rated Insulation Voltage: 1000V AC
  • Rated Impulse Withstand Voltage: 8kV
  • Utilisation Category: AC-33B
  • Rated Short-Circuit Breaking Capacity: 35kA
  • Controller: Type B intelligent controller
  • Control Supply: 230/240V AC, 50/60Hz
  • Control Voltage Range: 85% to 110% of rated control voltage
  • Operation: Automatic and manual transfer
  • Power Source Modes: Mains-mains or mains-generator
  • Protection: Integrated thermal-magnetic overcurrent protection
  • Communication: RS-485 communication available through the intelligent controller
  • Dimensions (H x L x W): 223mm x 178mm x 312mm
  • Weight: 11 kg
Key Features
  • Automatic transfer between normal and alternative power sources
  • Suitable for mains-generator changeover applications
  • Four-pole switching disconnects the neutral along with the active conductors
  • Integrated circuit-breaker protection in a moulded-case format
  • Type B intelligent controller with display and configurable operating parameters
  • Generator start control and adjustable transfer and return delays
  • Manual operation available for testing and maintenance
  • Mechanical interlock and off-position for safer servicing
  • Suitable for vertical or horizontal installation
  • Padlockable off-position for isolation
Professional Installation Requirements
  • Installation, wiring, commissioning and testing must be performed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian requirements, including AS/NZS 3000 and AS/NZS 3010. The mains and generator sources must be correctly isolated, earthed and interlocked.
Applications
  • Mains-to-generator automatic changeover
  • Standby power systems
  • Commercial and industrial switchboards
  • Critical-load power continuity systems
  • Building services and infrastructure installations
  • Three-phase, four-wire distribution systems
Standards & Compliance
  • Applicable product standard: AS/NZS IEC 60947.6.1:2015 for low-voltage transfer switching equipment
  • Installation requirements: AS/NZS 3000:2018 Wiring Rules
  • Generator installation requirements: AS/NZS 3010:2017
Environmental Benefits
  • Long service life can reduce replacement frequency and associated material waste
  • Metallic electrical components are generally recyclable at end of service life
  • Supports reliable standby power operation, helping reduce downtime and avoid premature replacement of connected equipment
Warranty Information

CHINT general warranty policy covers other low-voltage apparatus against defects in materials and workmanship for 27 months from the date of manufacture when purchased through authorised sales channels, unless a contract specifies otherwise.

Available Now

Available through authorised CHINT distributors in Australia.
