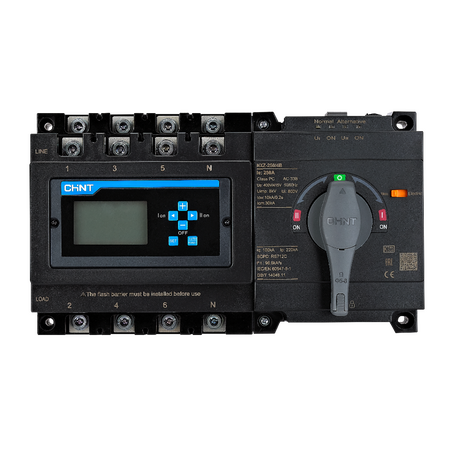

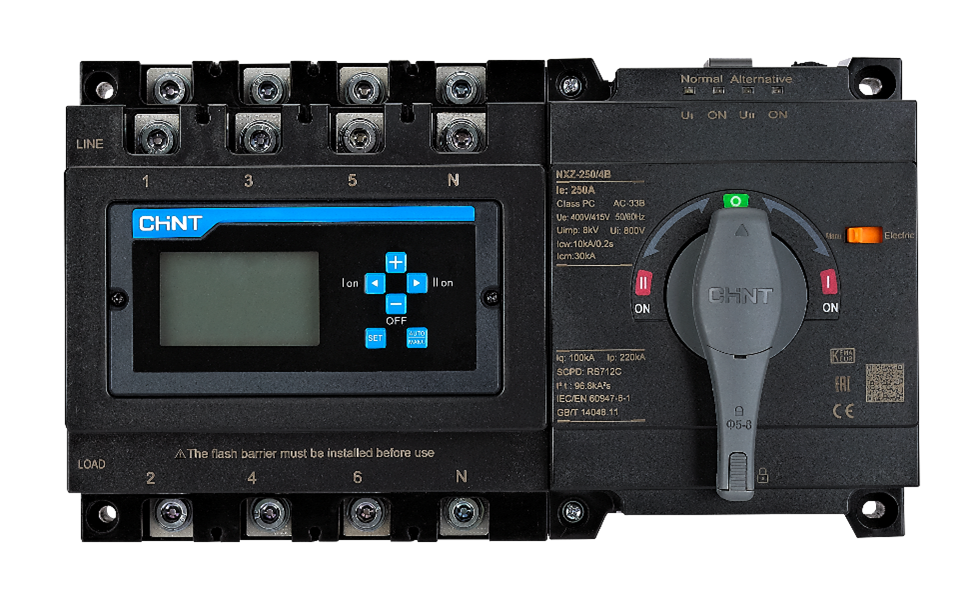

ATS 4P 200A Type A 250A Frame NXZM Chint

BRAND: CABAC
SKU: 297208
$3,561.30 List price: $4,748.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint NXZM 200A 4P ATS features CB class changeover, Type A standard controller and 250A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM 200A ATS, 4-Pole Automatic Changeover Switch, Mains-Generator Transfer Switch, CB-Class ATSE

Technical Specifications
  • Product Series: NXZM
  • Rated Current: 200 A
  • Frame Current: 250 A
  • Configuration: 4-pole, 4P
  • Equipment Class: CB-class automatic transfer switching equipment
  • Controller: Type A standard controller
  • Breaking Capacity: H type, 10 kA
  • Rated Operational Voltage: 400/415 V AC, 50 Hz
  • Rated Insulation Voltage: 1,000 V AC
  • Utilisation Category: AC-33B
  • Control Supply: 230/240 V AC, 50 Hz
  • Control Voltage Range: 85% to 110% of rated control voltage
  • Generator Protection: Integrated generator protection function
  • Installation Orientation: Vertical or horizontal
  • Dimensions (H x L x W): 216mm x 390mm x 240mm
  • Weight: 18 kg
Key Features
  • Automatic changeover between mains and generator supplies
  • Four-pole switching for three-phase systems with neutral isolation
  • CB-class construction with integrated circuit-breaker protection
  • 250A frame size with 200A rated switching current
  • Type A standard controller for essential source monitoring and transfer control
  • Manual, automatic and reset operating modes
  • Suitable for mains-generator changeover applications
  • Lockable manual operating mechanism for maintenance isolation
Professional Installation Requirements
  • Installation, wiring and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000, AS/NZS 3010, manufacturer instructions and applicable state or territory electrical requirements. Verify fault levels, neutral switching, generator interlocking and protection coordination before energisation.
Applications
  • Mains-generator automatic changeover systems
  • Commercial and industrial standby power installations
  • Emergency power distribution systems
  • Three-phase switchboards requiring neutral switching
  • Critical loads requiring automatic transfer between normal and alternative supplies
Standards & Compliance
  • AS/NZS IEC 60947.6.1:2015 for automatic transfer switching equipment
  • AS/NZS 3000 for electrical installations and wiring rules
  • AS/NZS 3010:2017 for electrical installations incorporating generating sets
Environmental Benefits
  • Automatic source selection can minimise unnecessary generator runtime and associated fuel consumption during supply interruptions.
  • Durable switchgear construction supports a long service life, reducing replacement frequency and electrical equipment waste.
Warranty Information

CHINT warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture against defects in materials and workmanship when purchased through authorised sales channels. Contractual or regional warranty terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
