ATS 4P 315A High Breaking Type B 400A Frame NXZM Chint

BRAND: CABAC
SKU: 437596
$6,995.30 List price: $9,327.10
+ −
30 Days Return Electricians Unlock Trade Access

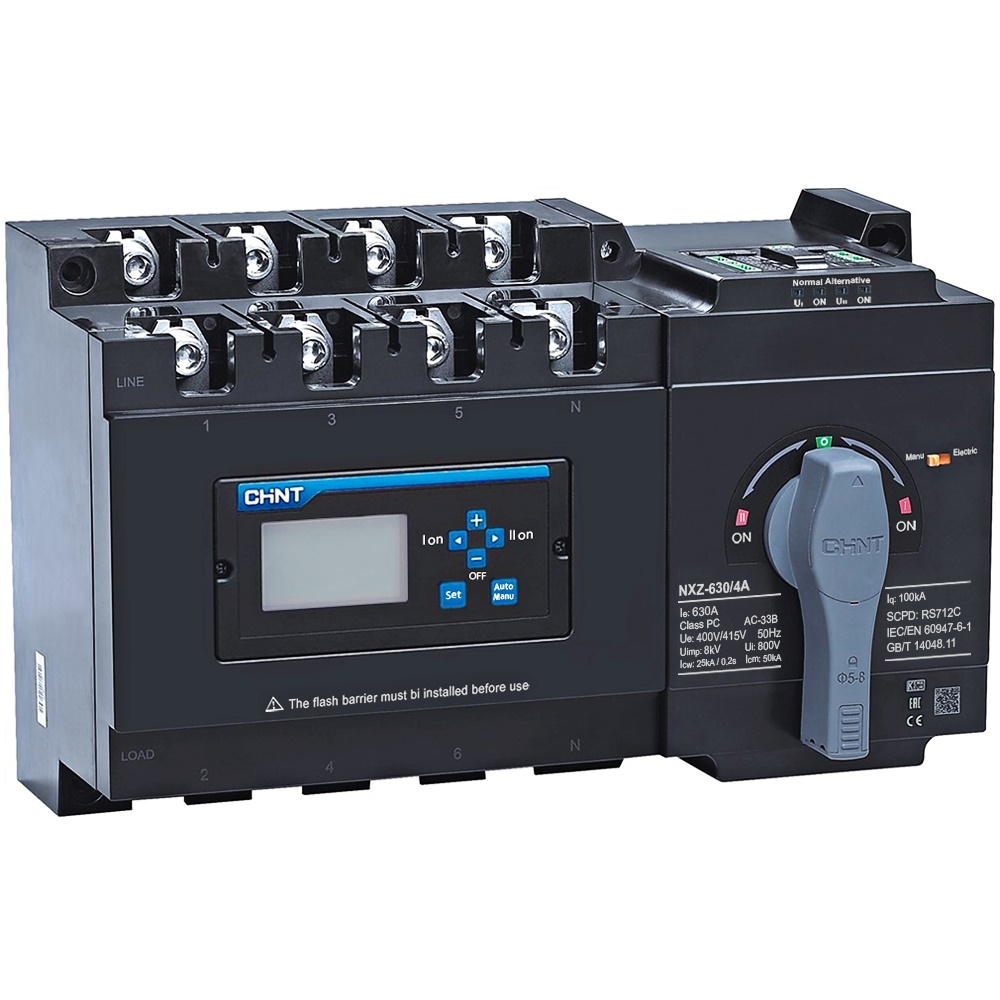

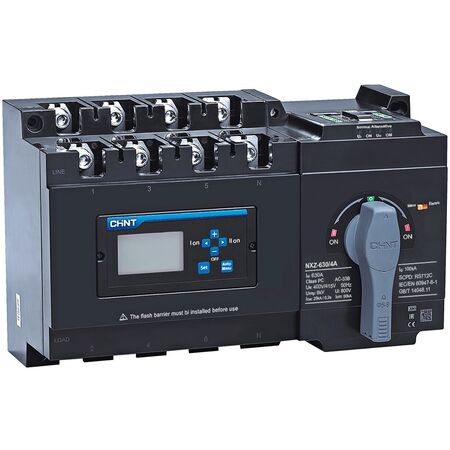

Chint NXZM 315A 4P ATS features CB class changeover, Type B intelligent controller, high breaking capacity and 400A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM 4P ATS, CB Class Automatic Changeover Switch, Mains-Generator Transfer Switch

Technical Specifications
  • Product Type: Automatic transfer switching equipment
  • Series: NXZM
  • ATS Class: CB class changeover
  • Frame Current: 400A
  • Rated Current: 315A
  • Number of Poles: 4P
  • Breaking Capacity: High-breaking H version; up to 65kA at 380V AC, subject to operating voltage
  • Rated Operational Voltage: 400V AC or 415V AC
  • Control Voltage: 230V AC or 240V AC, 50Hz
  • Controller: Type B intelligent controller
  • Controller Installation: Built-in
  • Utilisation Category: AC-33B
  • Transfer Time: 3.5 seconds ±10%
  • Mechanical Endurance: 4,000 operations
  • Electrical Endurance: 1,500 operations
  • Mounting Method: Surface mounting
  • Connection Method: Flat-facing bars
  • Operating Temperature: -5°C to +40°C
  • Maximum Installation Altitude: 2,000m
  • Dimensions (H x L x W): 464mm x 535mm x 198mm
  • Weight: 18 kg
Key Features
  • Four-pole automatic changeover for switching between normal and alternative power supplies
  • CB class construction with integrated circuit-breaker protection
  • High-breaking H frame suitable for higher prospective fault-current applications
  • Type B intelligent controller for automatic transfer and return functions
  • Supports mains-generator and mains-mains changeover configurations
  • Monitoring of normal and alternative supply conditions
  • Phase-failure, voltage-loss, undervoltage and overvoltage transfer functions
  • Adjustable transfer and return delays
  • Manual and automatic operating modes
  • Generator start control, fire-control input and feedback functions
Professional Installation Requirements
  • Installation, commissioning and connection to mains or generator supplies must be performed by a licensed electrician in accordance with AS/NZS 3000, AS/NZS 3010, applicable state or territory electrical requirements and the manufacturer's instructions. Correct neutral switching and MEN arrangements must be verified for the installation.
Applications
  • Mains-generator automatic changeover systems
  • Standby power systems
  • Commercial and industrial switchboards
  • Hospitals, data centres and telecommunications facilities
  • Manufacturing plants and critical-load installations
  • Buildings requiring automatic transfer between two low-voltage AC sources
Standards & Compliance
  • AS/NZS 60947.6.1:2015 is the applicable Australian/New Zealand product standard for automatic transfer switching equipment
  • AS/NZS 3000:2018 applies to electrical installation and switchboard wiring requirements
  • AS/NZS 3010:2017 applies where the transfer switch is used with generating sets
Environmental Benefits
  • Supports controlled generator operation by transferring loads only when the normal supply is unavailable or restored
  • Durable switchgear construction can extend service life and reduce replacement waste
  • Metallic switchgear components are suitable for recovery and recycling at end of service life
Warranty Information

CHINT warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture when purchased through authorised sales channels, subject to contract terms and exclusions.
