ATS 4P 500A Type A 630A Frame NXZM Chint

BRAND: CABAC
SKU: 297227
$7,949.20 List price: $10,599.00
+ −
30 Days Return Electricians Unlock Trade Access

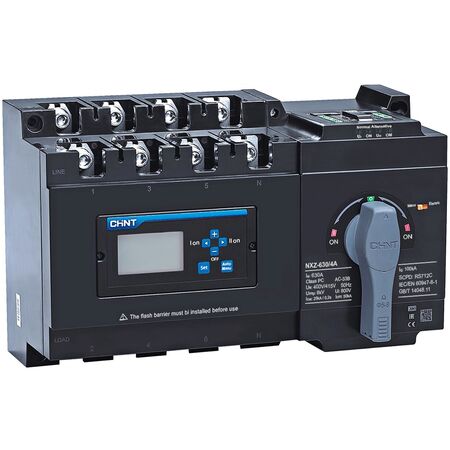

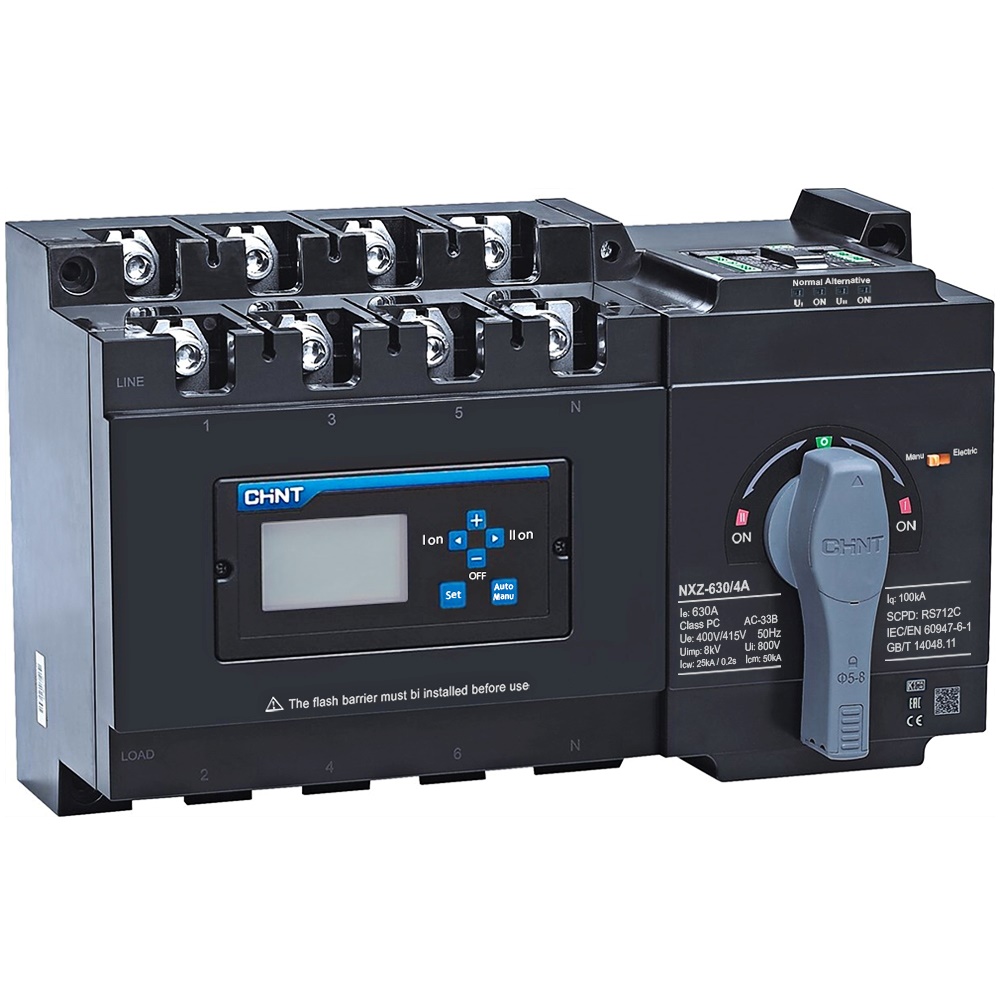

Chint NXZM 500A 4P ATS features CB class changeover, Type A standard controller and 630A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM 500A ATS, 4P Automatic Changeover Switch, Mains-Generator Transfer Switch, CB-Class ATSE

Technical Specifications
  • Product Type: Automatic transfer switching equipment, Class CB
  • Series: NXZM
  • Frame Current: 630A
  • Rated Current: 500A
  • Number of Poles: 4P
  • Controller: Type A standard controller with LED indication
  • Rated Operational Voltage: 400/415V AC
  • Frequency: 50Hz
  • Rated Insulation Voltage: 800V AC
  • Rated Impulse Withstand Voltage: 8kV
  • Utilisation Category: AC-33B
  • Rated Short-Circuit Making Capacity: 50kA
  • Rated Short-Time Withstand Current: 25kA for 0.2 seconds
  • Control Supply Voltage: 230/240V AC, 50/60Hz
  • Control Voltage Range: 85% to 110% of rated voltage
  • Operating Transfer Time: Approximately 3.5 seconds
  • Mechanical Endurance: Up to 4,000 switching cycles
  • Electrical Endurance: Up to 1,500 switching cycles
  • Installation: Integrated or split controller configuration
  • Ingress Protection: IP30, excluding wiring terminals
  • Dimensions (H x L x W): 272mm x 230mm x 430mm
  • Weight: 25 kg
Key Features
  • Automatic transfer between normal and alternative power sources
  • Suitable for mains-generator changeover applications
  • Four-pole switching configuration including neutral
  • Circuit-breaker-based Class CB construction
  • 630A frame accommodates the 500A rated current
  • Type A standard controller with LED status indication
  • Automatic transfer and restoration functions
  • Monitors phase failure, voltage loss, undervoltage and overvoltage
  • Adjustable transfer and return delays from 0 to 300 seconds
  • Generator start and stop control functions
  • Manual, automatic and off-position operating modes
  • Mechanical interlocking and padlockable off position
Professional Installation Requirements
  • Installation, commissioning and connection to mains or generator supplies must be performed by a licensed electrical contractor in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable generator installation requirements including AS/NZS 3010.
Applications
  • Mains-to-generator automatic changeover
  • Commercial and industrial distribution boards
  • Standby power systems
  • High-rise building emergency power systems
  • Data centres and critical load installations
  • Industrial plant and infrastructure power supplies
Standards & Compliance
  • Applicable product standard: AS/NZS IEC 60947.6.1:2015 for low-voltage transfer switching equipment
  • Installation should comply with AS/NZS 3000 Wiring Rules
  • Generator-connected installations should be assessed against AS/NZS 3010
Environmental Benefits
  • Supports the use of standby generators and alternative energy sources to maintain power continuity
  • Durable switchgear construction can reduce replacement frequency and associated waste
  • Steel, copper and aluminium components are suitable for recovery and recycling at end of service life
  • Automatic source transfer can help maintain efficient operation of critical electrical systems during supply interruptions
Warranty Information

CHINT's general policy provides a 27-month warranty from the date of manufacture for other low-voltage apparatus sold through authorised channels, unless the sales contract specifies different terms. Warranty coverage is subject to correct installation, operation and maintenance.

Available Now

Available through authorised CHINT distributors in Australia.
