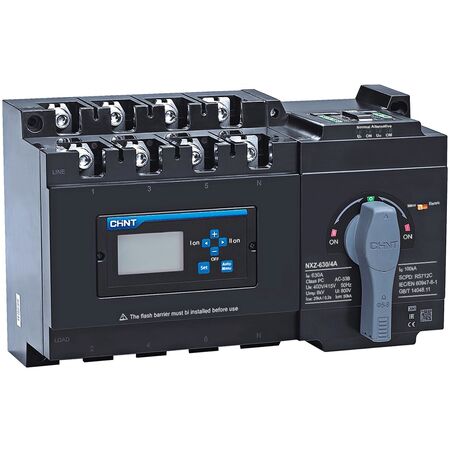

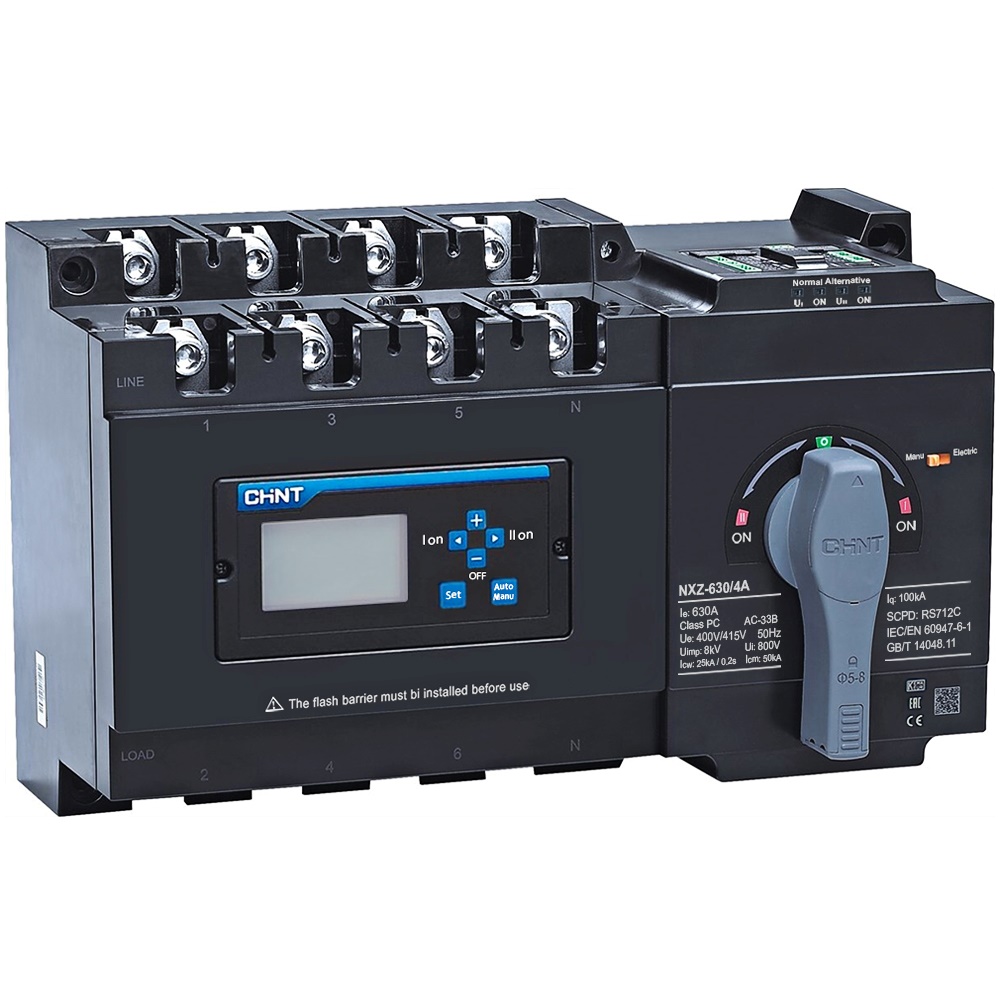

ATS 4P 500A Type B 630A Frame NXZM Chint

BRAND: CABAC
SKU: 256830
$7,949.20 List price: $10,599.00
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Chint NXZM 500A 4P ATS features CB class changeover, Type B intelligent controller and 630A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM-630 4-pole ATS, NXZM 500A mains-generator changeover switch, Class CB automatic transfer switching equipment

Technical Specifications
  • Product Type: Class CB automatic transfer switching equipment
  • Rated Current: 500 A
  • Frame Current: 630 A
  • Number of Poles: 4P
  • Controller: Type B intelligent controller
  • Rated Operational Voltage: 400/415 V AC, 50 Hz
  • Rated Insulation Voltage: AC 1000 V
  • Rated Impulse Withstand Voltage: 12 kV
  • Utilisation Category: AC-33B
  • Rated Short-Circuit Making Capacity: 154 kA for H breaking-capacity version
  • Rated Short-Circuit Breaking Capacity: 70 kA for H breaking-capacity version
  • Control Supply: 230/240 V AC, 50 Hz
  • Control Voltage Range: 85% to 110% of Ue
  • Operating Transfer Time: 3.5 seconds ±10%
  • Installation Mode: Integrated or split
  • Mechanical Endurance: 4,000 operations
  • Electrical Endurance: 1,500 operations
  • Operating Functions: Automatic transfer, automatic retransfer, manual operation, adjustable transfer and return delays, generator control and fire-control feedback
  • Dimensions (H x L x W): 464mm x 540mm x 234mm
  • Weight: 29 kg
Key Features
  • Four-pole switching for three-phase, four-wire systems
  • 500 A rated switching capacity within a 630 A frame
  • Type B intelligent controller for automatic monitoring and source transfer
  • Suitable for mains-generator and grid-grid changeover applications
  • Supports automatic transfer and return operation
  • Built-in or split controller installation options
  • Manual override and lockable maintenance position
  • Designed for industrial, commercial and standby power installations
Professional Installation Requirements
  • Installation, commissioning and connection to mains or generator supplies must be performed by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable generator-installation requirements.
Applications
  • Mains-generator automatic changeover
  • Standby power systems
  • Commercial and industrial switchboards
  • Critical power distribution
  • Three-phase, four-wire electrical installations
  • Utility-utility or grid-grid source transfer systems
Standards & Compliance
  • AS/NZS 60947.6.1 for low-voltage transfer switching equipment
  • AS/NZS 3000 for electrical installation and switchboard wiring requirements
Environmental Benefits
  • Supports efficient use of standby generation by automatically transferring loads only when the primary supply is unavailable
  • Durable switching construction and high operating endurance can reduce replacement frequency and electrical equipment waste
  • Metal and thermoplastic components may be recoverable through appropriate electrical equipment recycling streams
Warranty Information

CHINT low-voltage apparatus is generally covered for 27 months from the date of manufacture when purchased through authorised sales channels, subject to the applicable customer contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
