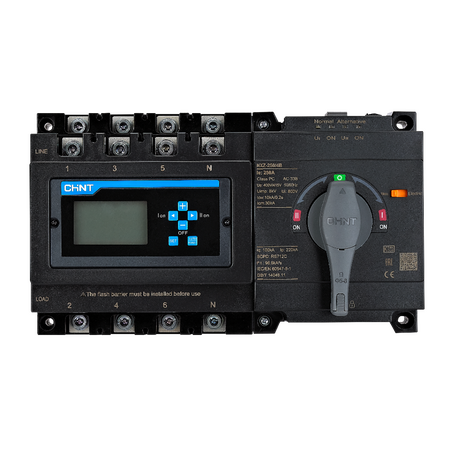

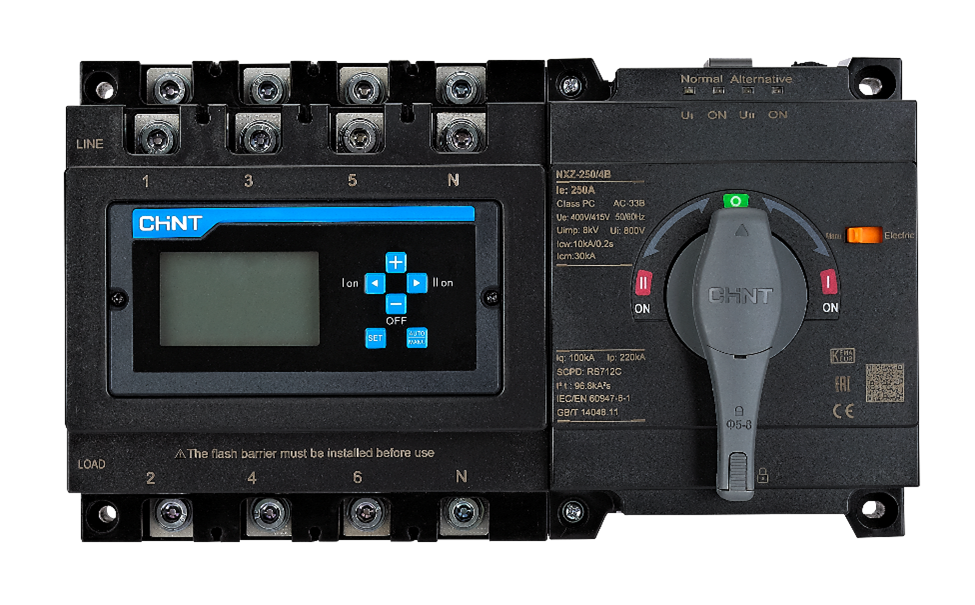

ATS 4P 63A Type A 63A Frame NXZM Chint

BRAND: CABAC
SKU: 297171
$2,988.90 List price: $3,985.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NXZM 63A 4P ATS features CB class changeover, Type A standard controller and 63A frame. Ideal for mains-generator changeover.

Alternatively Known As: Automatic Transfer Switch, ATS Changeover Switch, Generator Changeover Switch, Dual Power Automatic Transfer Switching Equipment

Technical Specifications
  • Product Series: NXZM CB-class automatic transfer switching equipment
  • Model Variant: NXZM-63S/4A 63A
  • Rated Current: 63A
  • Frame Current: 63A
  • Number of Poles: 4P
  • Controller Type: Type A standard controller
  • Rated Operational Voltage: 400/415V AC, 50Hz
  • Rated Insulation Voltage: 800V AC
  • Rated Impulse Withstand Voltage: 8kV
  • Utilisation Category: AC-33B
  • Rated Short-Circuit Making Capacity: 52.5kA
  • Rated Short-Circuit Breaking Capacity: 25kA
  • Mechanical Endurance: 10,000 operations
  • Electrical Endurance: 2,000 operations
  • Rated Control Supply: 230/240V AC, 50Hz
  • Control Voltage Range: 85% to 110% of rated voltage
  • Operating Transfer Time: 2.8 seconds, ±10%
  • Installation Mode: Integrated or split installation
  • Dimensions (H x L x W): 240mm x 300mm x 190mm
  • Weight: 5 kg
Key Features
  • Automatic transfer between normal mains and standby generator supplies
  • CB-class changeover construction with integrated circuit-breaker protection
  • Four-pole switching for three-phase systems with neutral switching
  • Type A standard controller for automatic source monitoring and transfer
  • Manual operation and reset capability
  • Suitable for three-phase, four-wire dual-supply systems
  • Designed for commercial, industrial, residential and generator-backed installations
  • Supports vertical or horizontal installation
Professional Installation Requirements
  • Installation, commissioning and connection to mains or generator supplies must be performed by a licensed electrical contractor in accordance with applicable wiring, generator and transfer-switching requirements. Type A controllers do not provide generator control or fire-fighting feedback functions.
Applications
  • Mains-to-generator automatic changeover
  • Standby power systems
  • Commercial and industrial buildings
  • Residential backup power installations
  • Three-phase, four-wire dual-source distribution systems
  • Critical-load power continuity applications
Standards & Compliance
  • AS/NZS IEC 60947.6.1:2015 for low-voltage transfer switching equipment
  • AS/NZS 3010:2017 for electrical installations incorporating generating sets
  • AS/NZS 3000:2018 for electrical installation and wiring requirements
Environmental Benefits
  • Automatic transfer helps maintain continuity of supply and supports efficient use of standby generation
  • Durable construction and high mechanical endurance can reduce replacement frequency and product waste
  • Metal and polymer components may be recoverable through appropriate electrical equipment recycling streams
Warranty Information

CHINT general warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to applicable contract terms and conditions.

Available Now

Available through authorised CHINT distributors in Australia.
