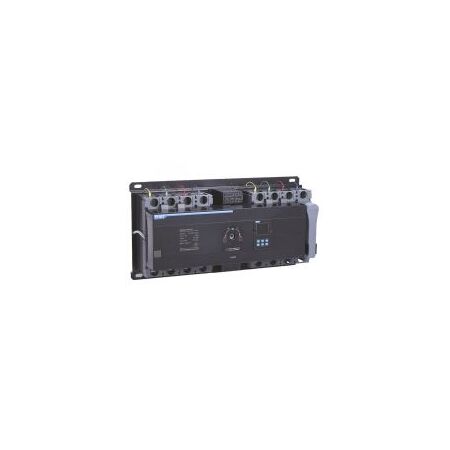

ATS 4P 800A Type B 800A Frame NXZM Chint

BRAND: CABAC
SKU: 256838
$10,493.00 List price: $13,990.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Chint NXZM 800A 4P ATS features CB class changeover, Type B intelligent controller and 800A frame. Ideal for mains-generator changeover.

Alternatively Known As: CHINT NXZM-800 4P ATS, CHINT 800A Automatic Changeover Switch, Mains-Generator Transfer Switch

Technical Specifications
  • Rated Current: 800 A
  • Frame Current: 800 A
  • Number of Poles: 4P
  • Switching Class: Class CB
  • Controller: Type B standard controller
  • Rated Working Voltage: AC 230/240 V and AC 400/415 V
  • Rated Frequency: 50/60 Hz
  • Utilisation Category: AC-33B
  • Rated Insulation Voltage: 1,000 V
  • Rated Impulse Withstand Voltage: 12 kV
  • Switch Positions: Power supply I, power supply II and power-off
  • Conversion Action Time: Up to 3 seconds
  • Control Supply: 230/240 V AC
  • Connection: Top in, bottom out; incoming connections on the same side
  • Generator Function: Automatic mains-generator changeover with generator start control
  • Terminal Capacity: Up to two 240 mm² conductors for currents above 630 A
  • Dimensions (H x L x W): 477mm x 660mm x 238mm
  • Weight: 70 kg
Key Features
  • 800A automatic transfer switching for high-current installations
  • Four-pole switching suitable for three-phase four-wire systems
  • Class CB configuration using circuit-breaker-based switching
  • Type B controller monitors supply voltage and phase loss
  • Supports grid-generator automatic changeover
  • Automatic transfer and return-to-normal operation
  • Manual and automatic operating modes
  • Power-off position for isolation and maintenance
  • Suitable for industrial, commercial and building services applications
Professional Installation Requirements
  • Installation, commissioning and testing must be performed by a licensed electrician or suitably qualified electrical contractor in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable generator installation requirements. Verify neutral switching, fault levels, cable capacity and coordination before energising.
Applications
  • Mains-generator changeover systems
  • Commercial and industrial standby power installations
  • Main switchboards and distribution boards
  • High-current building services systems
  • Data centres, infrastructure and other critical-load applications
Standards & Compliance
  • AS/NZS 60947.6.1 for low-voltage transfer switching equipment
  • AS/NZS 3010 for electrical installations incorporating generating sets
  • AS/NZS 3000 for Australian electrical installations
Environmental Benefits
  • Enables continued operation of electrical systems during mains interruptions, supporting efficient use of standby generation
  • Durable switchgear construction can reduce replacement frequency and associated material waste
  • Metal switchgear components are suitable for recovery and recycling at end of service life
Warranty Information

CHINT warranty coverage for other low-voltage apparatus is 27 months from the date of manufacture when purchased through authorised sales channels, subject to the applicable contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
