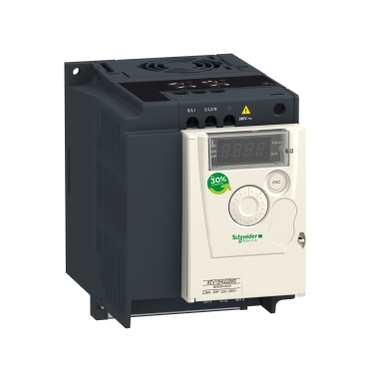

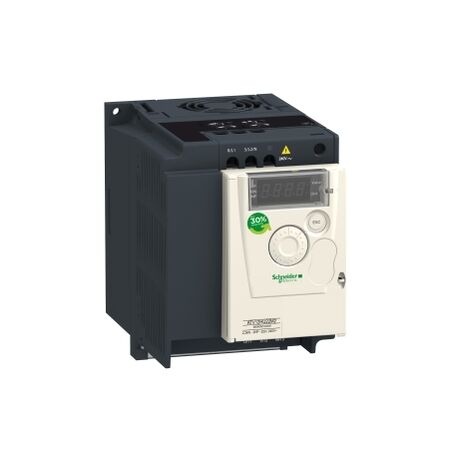

ATV12 1.5KW 240V 3PH Heat Sink | Integrated Thermal Management | Compact Design | by Clipsal
The ATV12 1.5KW 240V 3PH Heat Sink is designed for efficient motor control in industrial applications. With a robust 1.5kW power rating and integrated heat sink for optimal thermal management, it’s perfect for pumps, fans, and conveyors. Built for reliability, it features overload protection and a simple setup, making it ideal for licensed electricians and industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ATV12 1.5KW 240V 3PH Heat Sink | Integrated Thermal Management | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHATV12HU15M3
Alternatively Known As: ATV12HU15M3, Schneider ATV12, Variable Speed Drive 1.5kW, ATV12 1.5kW VSD, Clipsal VSD 1.5kW, 3 Phase VSD 240V
Technical Specifications
- Power rating: 1.5kW (2HP)
- Input voltage: 200-240V AC, 3-phase
- Output voltage: 200-240V AC, 3-phase
- Output frequency: 0.5 to 400Hz
- Integrated heat sink for passive cooling
- Control method: V/F and sensorless vector control
- Overload capacity: 150% for 60 seconds
- Protection: Overload, short-circuit, overvoltage, undervoltage, phase loss
- Operating temperature: -10°C to +50°C
- Dimensions (H x L x W): 143mm x 132mm x 72mm
- Weight: 1.2 kg
Key Features
- 1.5kW (2HP) power rating for three-phase motors
- Input voltage: 200-240V AC, 3-phase
- Integrated heat sink for efficient thermal management
- Compact design for easy panel integration
- Simple setup and operation
- Robust protection features including overload, short-circuit, and overvoltage
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and industrial control systems.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- HVAC systems
- General motor control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces mechanical wear and energy waste
- Supports sustainable industrial operations
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal ATV12 1.5KW 240V 3PH Heat Sink Variable Speed Drive (SCHATV12HU15M3) is available for immediate purchase. Ideal for industrial motor control and automation applications.
