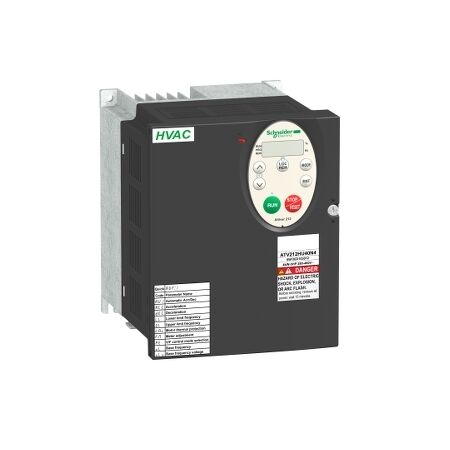

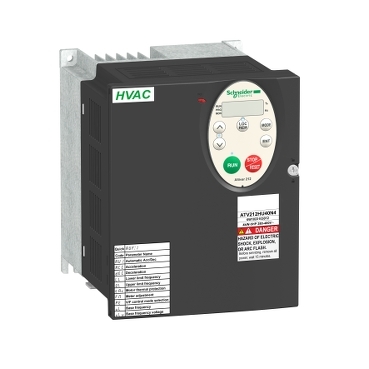

ATV212 3KW Variable Speed Drive | 480V 3-Phase | Integrated EMC Filter | HVAC Optimized | @Pack of 1 | by Clipsal
The ATV212 3KW Variable Speed Drive is designed for robust motor control in HVAC systems, featuring a 480V three-phase input and an integrated EMC filter for reduced electrical noise. Ideal for commercial and industrial applications, this drive optimizes energy efficiency while ensuring reliable performance in pumps and fans.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ATV212 3KW Variable Speed Drive | 480V 3-Phase | Integrated EMC Filter | HVAC Optimized | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV212HU30N4
Alternatively Known As: ATV212 Variable Speed Drive, Schneider ATV212HU30N4, 3kW VSD, 480V 3-Phase Drive, HVAC Inverter, Clipsal VSD
Technical Specifications
- Power Rating: 3kW (4HP)
- Input Voltage: 380-480V AC, 3-phase
- Output Voltage: 0-480V AC, 3-phase
- Frequency Range: 0.5 to 200Hz
- Integrated EMC Filter: CEM I
- Control Method: V/F, Sensorless Vector
- Protection: IP21 (standard), overload, short-circuit, overvoltage
- Operating Temperature: -10°C to +50°C
- Communication: Modbus, BACnet, Metasys N2, APOGEE FLN
- Dimensions (H x L x W): 260mm x 180mm x 130mm
- Weight: 5.5 kg
Key Features
- 3kW (4HP) power rating for robust motor control
- 480V three-phase input for industrial applications
- Optimized for HVAC applications with energy-saving features
- Integrated EMC filter for reduced electrical noise
- Compact design for easy panel integration
- Built-in CEM I for electromagnetic compatibility
- User-friendly interface for easy setup and operation
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- HVAC systems in commercial buildings
- Pumps and fans in industrial environments
- Water treatment plants
- General motor control for energy efficiency
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes CO2 emissions through efficient operation
- Supports sustainable building management
Warranty Information
Standard 2-year manufacturer warranty.
Available Now
The Clipsal ATV212 3KW 480V 3-Phase Variable Speed Drive (SCHATV212HU30N4) is available for immediate purchase. Ideal for HVAC, pump, and fan control in commercial and industrial environments.
